Durability & Performance:

Meets ANSI/BHMA 156.06 standards

Made from solid brass or stainless steel

Designed to withstand high-traffic areas and heavy use

Ease of Installation:

Heavy-duty mounting hardware exceeds industry standards

Suitable for various door thicknesses with optional mounting hardware available

Aesthetics:

Greenwich Series features a contemporary, transitional arc design

Choose from straight (8700) or offset (8800)

Ives double (508) and single hooks (508C) available to complement design

Complementary design to the Schlage Locks Greenwich rose style

Material: Made from solid brass or stainless steel (304 Series)

Mounting Hardware:

Heavy-duty mounting hardware exceeds industry standards

Available with through bolt screws and decorative washers (STD - mount)

Optional mounting hardware available (see general information section for details)

Specify door thickness; standard for 1 1⁄2" to 1 3⁄4", optional for 2" and 2 1⁄4" thick doors

Certifications: Meets ANSI/BHMA 156.06 standards

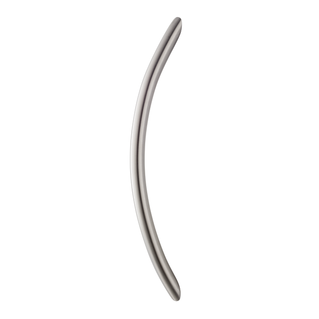

8700:Greenwich arc straight solid door pull

Available Sizes: 9", 12", 18", 24"; 3⁄4" Round pull

Mounting hardware: 5⁄16-18 mounting hardware. Specify door thickness.  Comes standard with through bolt screws and decorative washers. Optional mounting hardware available (see general information section

for details) F, I, J, L, O, P.

Dimensions:  Projection 2 3⁄8", Clearance 1 1⁄2", Center to center 9", Overall length CTC + 3-9/16"

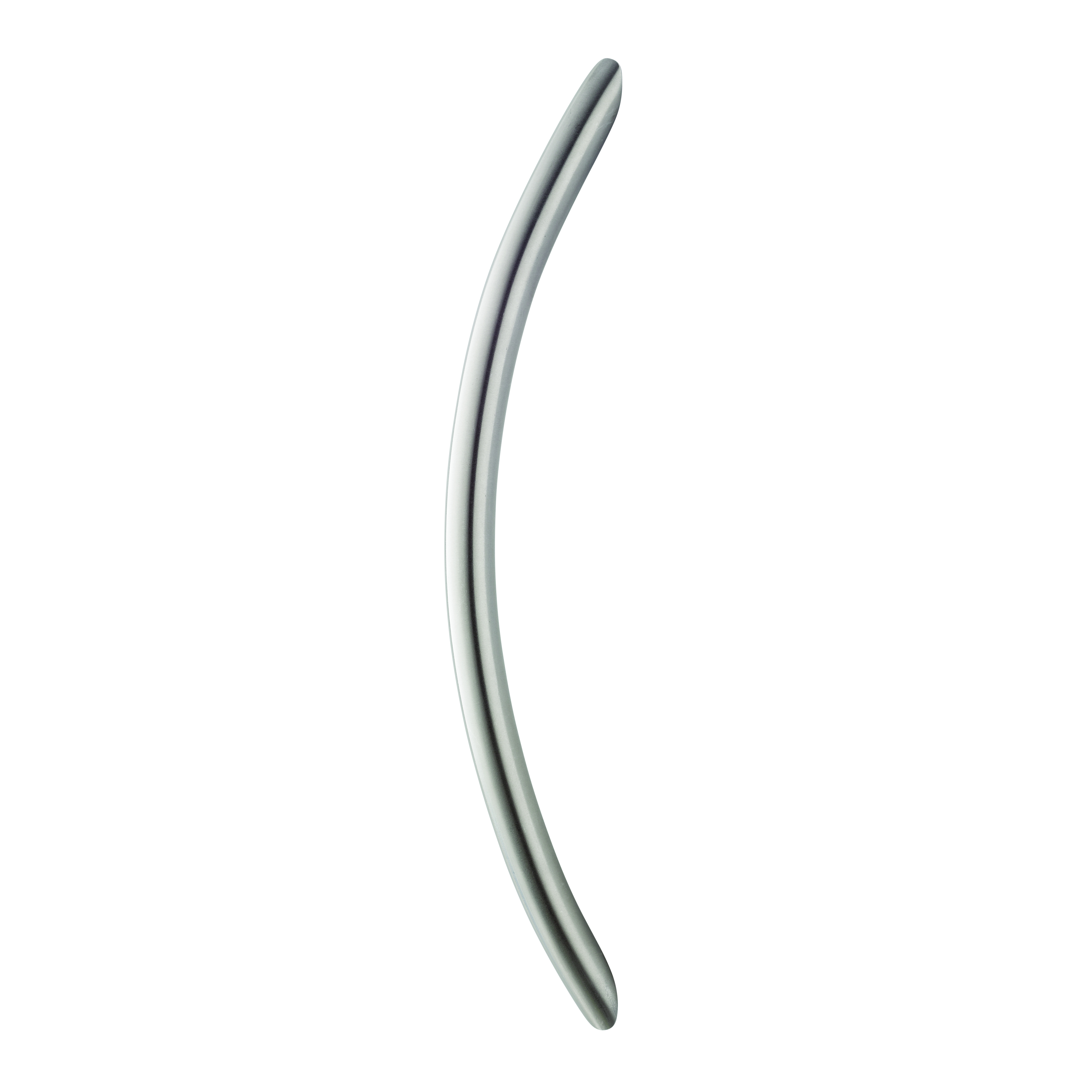

8800: Greenwich arc offset solid door pull

Available Sizes: 9", 12", 18", 24"; 3⁄4" Round pull

Mounting hardware: 1/4-20 mounting hardware. Specify door thickness.  Comes standard with through bolt screws and decorative washers. Optional mounting hardware available (see general information section

for details) F, I, J, L, O, P.

Dimensions: Projection 2 1⁄8", Clearance 1 3⁄8", Offset 1", Overall length Center to Center +  2-3/4"

Bright Brass (US3): BHMA 605

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Bright Chrome (US26): BHMA 625

Satin Chrome (US26D): BHMA 626

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631
