Durable Construction: Made from high-quality materials such as aluminum, brass, stainless steel, and high-impact polyethylene.

Versatile Design: Available in a variety of sizes and finishes to match different door styles and architectural designs.

Easy Installation: Comes with standard mounting hardware, with optional Tek/Torx packages available.

Material:

.050" thick brass, stainless steel, or aluminum

1⁄8" thick high-impact polyethylene in clear or black

Aluminum 5005 Series, brass C26800 Series, stainless steel 300 Series, plastic

Mounting Hardware:

Standard mounting package: #6 x 5⁄8 Oval head screws (16 per pack)

Optional Tek/Torx package: #6 x 5⁄8 Self-drilling, self-tapping screws, #6 x 5⁄8 Torx screws

Certifications:

Meets ANSI/BHMA A156.6 for J301

UL protection plates certified to UL10C for 8402 model

Number of Screw Packs Required by Plate Size:

Plate Size Range 22"-25" 26"-33" 34"-41" 42"-48"

4"-8" 1 1 1 1

9"-16" 1 1 1 1

17"-24" 1 1 1 2

25"-32" 1 1 2 2

33"-40" 1 2 2 2

41"-48" 2 2 2 2

Protection Plate Types:

Mop Plates:

Protect the bottom of the pull side of the door subject to cleaning and mopping procedures

Size Ranges: 4” to 6” high, 22” to 48” wide

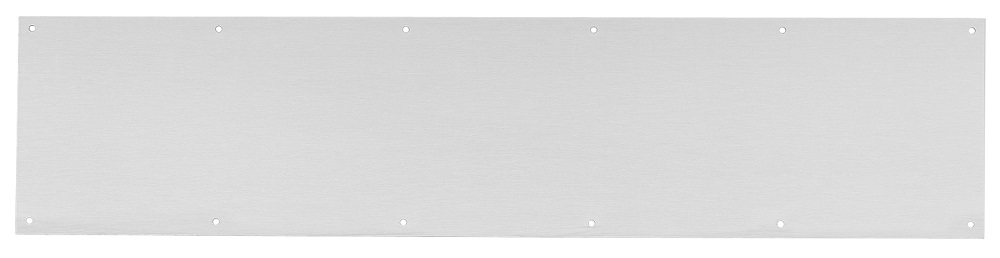

Kick Plates:

Protect the bottom of the push side of doors subject to scuffing from foot traffic. - Recommended for all doors subject to normal use, especially doors using a closer

Size Ranges: 8" to 24" high, 22" to 48” wide

Stretcher Plates:

Protect doors at specific areas where consistent contact is made by stretchers, service carts, or other equipment. Usually applied to the push side of doors

Size Ranges: 6" to 8" high, 22" to 48” wide

Armor Plates:

Protect the lower half of doors from abuse by hard carts, trucks, and rough usage. Usually applied to the push side of single doors and both sides of double acting doors

Size Ranges: 26" to 48" high, 22" to 48” wide

No Mounting Holes:

Specify B-NH (Not available on 8402. Available only with US32D, US32, US3, US4, US28, CLR, P-BLK)

No Mounting Holes with Adhesive: Specify B-NHA (Not available on 8402)

Extra Row of Screws: Specify ERS prepped

Special Cut-outs: Available as engineering special, consult customer service

Available Accessories:

Gasket tape kit tape is recommended when using a brass plate on a metal door to reduce tarnishing from electrolytic oxidation

One tape pack will cover an the perimeters of a 8" x 34" kickplate (Order 8401 gasket tape)
