Durability & Performance:

Meets ANSI/BHMA 156.06 standards

Made from aluminum, brass, and stainless steel

Designed to withstand high-traffic areas and heavy use

Ideal for both internal and external applications.

Wide variety of options:

Models available in various sizes, finishes, offset styles, and substrates

Ease of Installation:

Heavy-duty mounting hardware exceeds industry standards

Suitable for various door thicknesses with optional mounting hardware available

Material: Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (304 Series)

Mounting Hardware: View mounting hardware by model

Models, Sizes, and Dimensions:

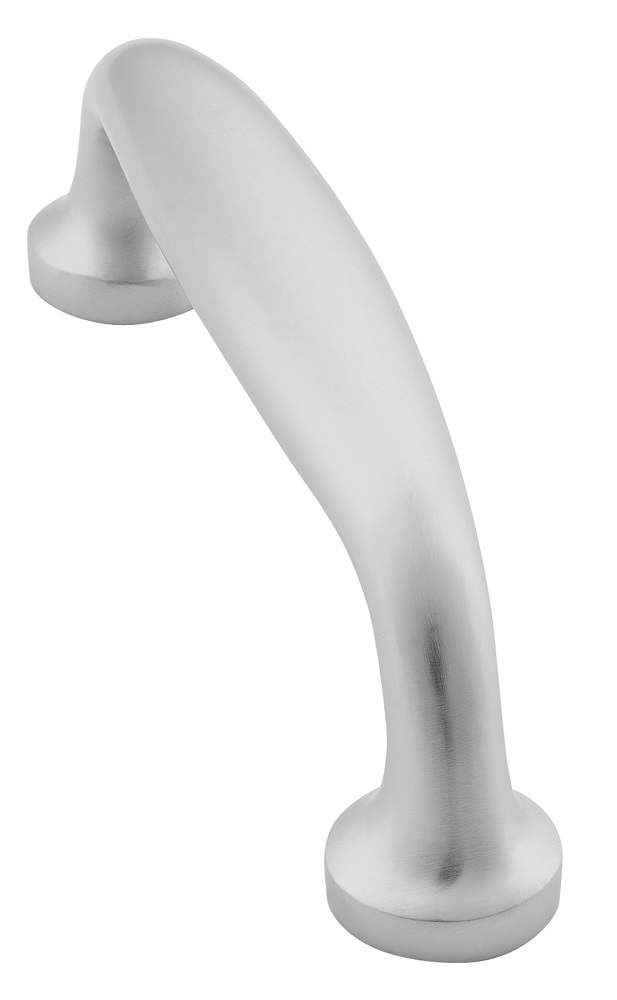

8111: Solid door pull, 1" round base

Available Sizes: 5 1⁄4"

Mounting Hardware: 1⁄4-20 mounting hardware. Specify door thickness. Standard mounting hardware for door thickness of 1 1⁄2" to 1 3⁄4" unless otherwise specified.  Optional package available for 2" and 2 1⁄4" thick doors. Comes standard with through bolt screws and decorative washers

Dimensions: Projection 1 13⁄16", Clearance 1 3⁄16", Center to center 5 1⁄4", Overall length 6 1⁄4"

8112: Solid door pull, 1-7/8" surface mounted base

Available Sizes: 5 5⁄8"

Mounting hardware: 8 x 1" wood screws. Surface mount only

Dimensions: Projection 2 13⁄16", Clearance 1 7⁄16", Center to center 5 5⁄8", Overall length 7 1⁄2"

8121: Solid door pull, 1-1/2" hospital

Available Sizes: 5 3⁄4"

Mounting hardware: 8-32 x 1" machine screw and #8 x 1" wood screw. Standard mounting hardware for door thickness of 1-1/2" to 1-3/4"

Dimensions: Projection 3 1⁄2", Clearance 1 7⁄16", Center to center 5 3⁄4", Overall length 8 3⁄4"

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Bright Chrome (US26): BHMA 625

Satin Chrome (US26D): BHMA 626*

Satin Chrome Antimicrobial (US26D-AM): BHMA 626-AM*

Satin Aluminum, Clear Anodized (US28): BHMA 628

Satin Stainless (US32D): BHMA 630

Satin Stainless Antimicrobial (US32D-AM): BHMA 630-AM**

Matte Black (BLK): BHMA 631

* Only finishes available for  8112 and 8121
