Durability & Performance:

Round design provides a smooth, ergonomic grip

Meets ANSI/BHMA 156.06 standards

Made from aluminum, brass, and stainless steel

Designed to withstand high-traffic areas and heavy use

Ideal for both internal and external applications

Wide variety of options:

Models available in various sizes, thicknesses, finishes, round and  flattened designs

Line includes Ives ADA-compliant pulls (EZ) that have a door-to-pull clearance of 2-1/2" or greater

EZ pulls come standard with 316 Series stainless, which makes them highly recommended for all external applications

Ease of Installation:

Heavy-duty mounting hardware exceeds industry standards

Suitable for various door thicknesses with optional mounting hardware available

Material: Made from solid aluminum (6061-T6 Alloy), brass, or stainless steel (304 or 316 Series)

Mounting Hardware:

Heavy-duty mounting hardware exceeds industry standards

Available with through bolt screws and decorative washers (STD - mount)

Optional mounting hardware available (see general information section in catalog for details)

Specify door thickness; standard for 1 1⁄2" to 1 3⁄4", optional for 2" and 2 1⁄4" thick doors

Certifications: Meets ANSI/BHMA 156.06 standards

Compliance: ADA compliant model is 8103EZHD

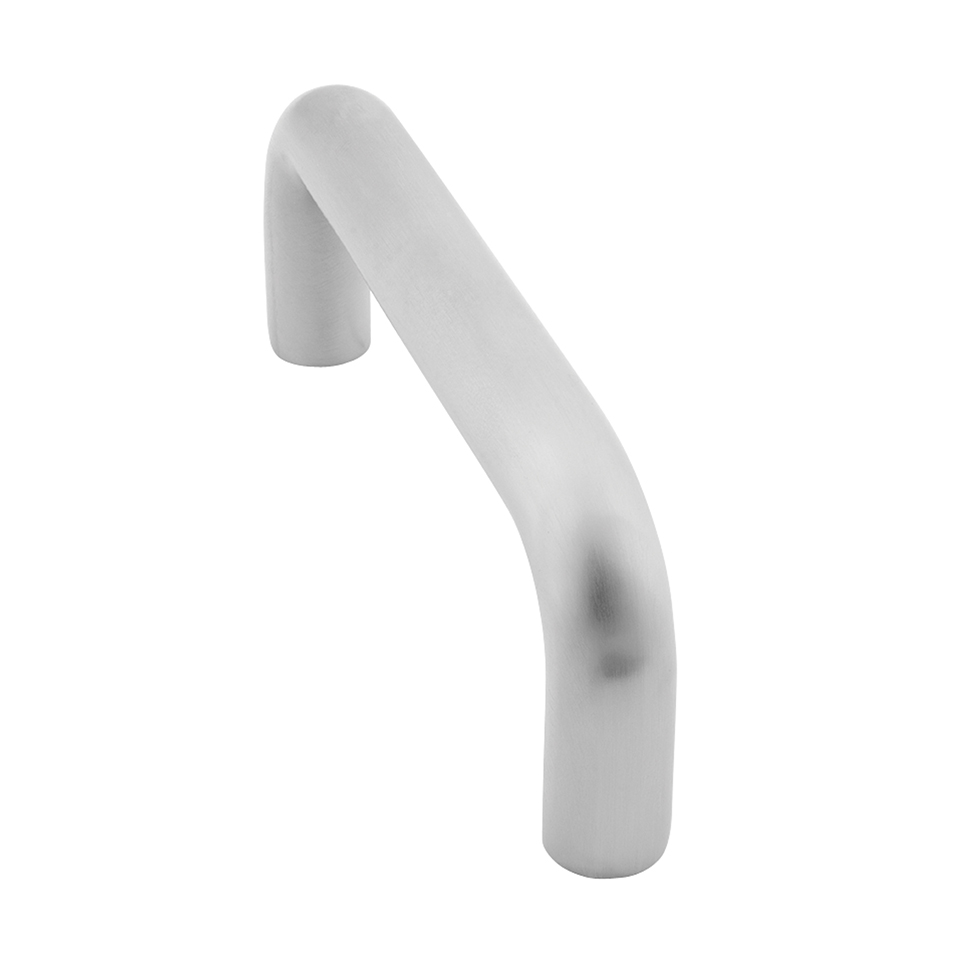

8102HD: Straight pull - 3⁄4" round

Available Sizes: 6", 8", 10"

Dimensions: Projection 2 1⁄4", Clearance 1 1⁄2", Overall length size + 3⁄4"

8103HD: Straight pull - 1" round

Available Sizes: 8", 10", 12"

Dimensions: Projection 2 1⁄2", Clearance 1 1⁄2",Overall length size + 1",  Offset 4 1/4"

8103EZHD: Straight pull - 1" round, ADA compliant:

Available Sizes: 8", 10", 12"

Dimensions: Projection 3 1⁄2", Clearance 2 1⁄2",  Overall length size + 1"

8105: Straight pull - 1" flattened

Available Sizes: 6", 8", 10"

Dimensions: Projection 2", Clearance 1 1⁄2", Center to center 6", Overall length size + 1⁄2"

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Bright Chrome (US26): BHMA 625

Satin Chrome (US26D): BHMA 626

Satin Chrome Antimicrobial (US26D-AM): BHMA 626-AM

Satin Aluminum, Clear Anodized (US28): BHMA 628*

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Satin Stainless Antimicrobial (US32D-AM): BHMA 630-AM

Matte Black (BLK): BHMA 631

Aged Bronze (643e/716): BHMA 643e/716*

Dark Bronze Powder Coat (SP313/US10BE): BHMA 695

* Not available on 8105
