Reliable Power Transfer: Provides electric power transfer to supply power to various electrified door hardware.

High-Quality Wiring: Each wire is 28 AWG, rated for 50 volts AC/DC at 3.5 amps continuous and 16 amps pulse, with a maximum pulse of 400 milliseconds.

Wiring Configurations: Available in TW4 (4 wire) or TW8 (8 wire) configurations to suit different power transfer needs.

Easy Connectivity: Supplied standard with Allegion Connect 4 or 8-pin Connector (CON) for easy integration with other electrified hardware items.

Multiple models: Choose from intermediate or pocket pivot hinge models, 7215PT-7226PT-7227PT INT (fire-rated or non-fire-rated), 7230FPT-7237FPT INT, E91105F.

Handing: Available in left-hand (LH) and right-hand (RH) configurations.

View individual intermediate and pocket pivot models for details.

Models:

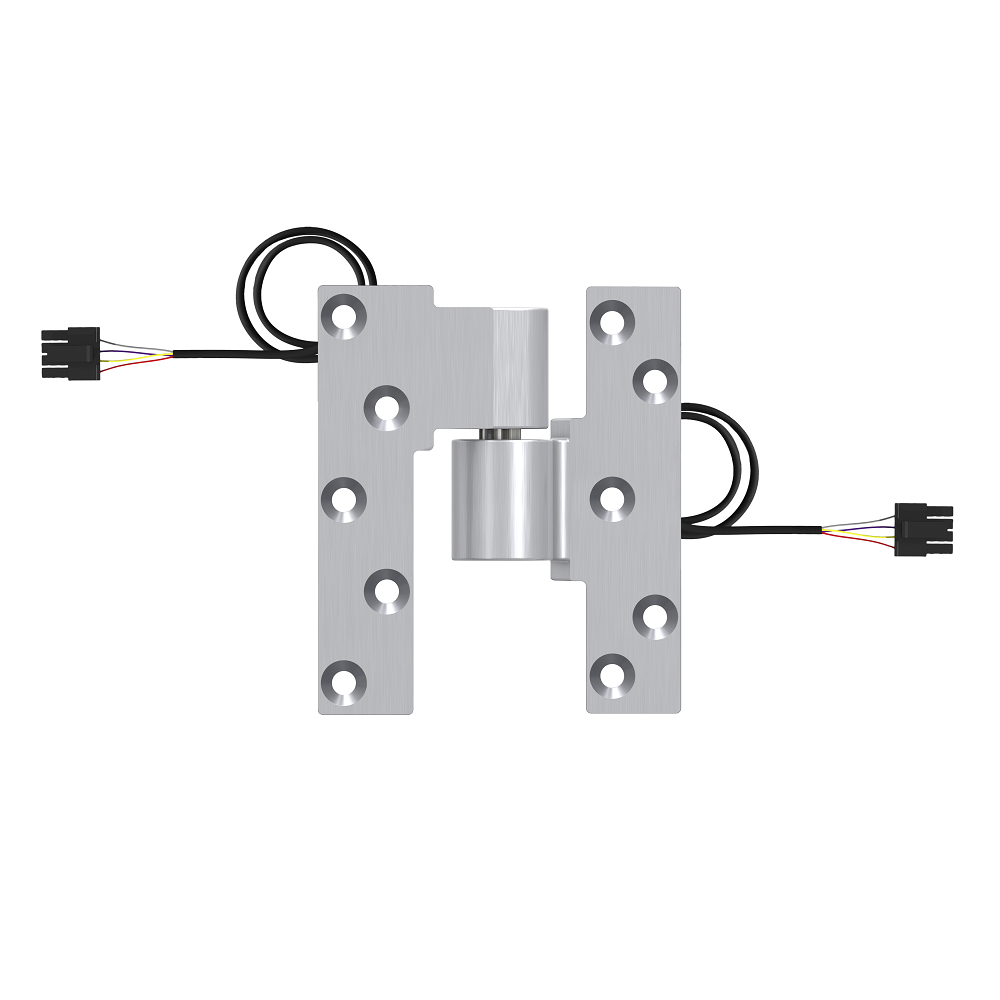

7215PT-7226PT-7227PT INT / 7215FPT-7226FPT-7227FPT INT:

¾" offset power transfer intermediate pivots for standard and fire-rated applications

Non-load bearing, available in multiple finishes, and certified for fire ratings

7230FPT-7237FPT INT:

¾" offset power transfer intermediate pivot, specifically fire-rated

Non-load bearing, available in multiple finishes, and certified for 3-hour fire rating

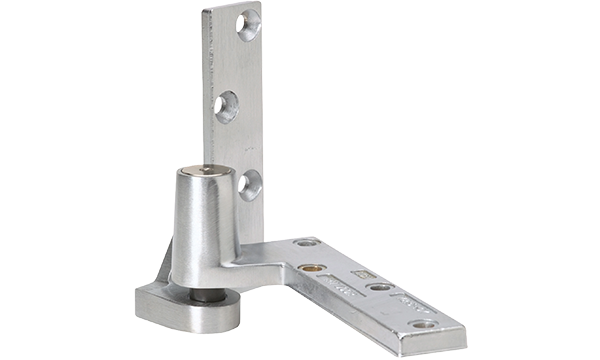

E91105F:

Pocket pivot/hinge, power transfer, fire-rated

Non-load bearing, full mortise design, allows door to open a full 90°, and standard for Allegion Connect. Not recommended for doors larger than 4'0" X 8'0". Not recommended for wood frames

See Ives catalog or individual product pages for finish details.
