Durability & Performance:

Made from high-strength cast brass for maximum durability

Central pivoting point ensures balanced movement and reduces wear and tear

Ideal for heavy-duty applications, capable of supporting heavier doors

Ease of Installation:

Concealed installation provides a clean, unobtrusive look

Floor to door clearance adjustable from 3⁄16" to 3⁄4"

Features a tilt-on bearing and bearing pin for straightforward setup

Suitable for both left-hand (LH) and right-hand (RH) installations

Material: Made from cast brass

Application:

Maximum door load: 1,000 pounds

Recommended for use with door thickness ranging from 2" to 3"; consult product support if doors are thicker than 3"

Not recommended for doors larger than 4'0" x 8'0"

Certifications:

Meets ANSI/BHMA A156.4 C07011 standards for performance and durability

Dimensions:

Radius Stop (A): Designed to clear the heel of the door edge

Pivot Distance (B): Minimum 1 ¾" (44mm) from jamb to centerline of pivot pin

Recommended radius heel edge of door is 1 5⁄8" (41mm) minimum

Clearance (C): Adjustable from 3⁄16" (5mm) to 3⁄4" (19mm) by varying the depth of the mortise in the bottom of the door. Consult product support for clearances over 3⁄4" (19mm)

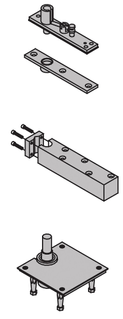

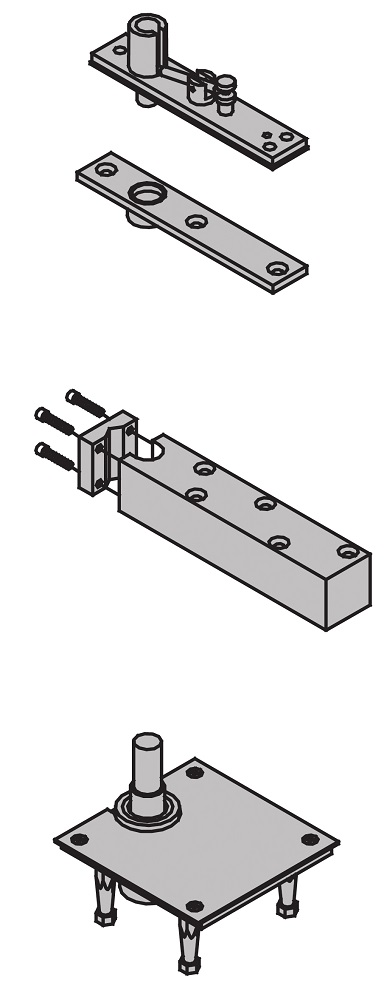

7259 Set: Includes both 7259 Top and 7259 Bottom components

7259 Top: Header mount

7259 Btm: Includes 7256 Bottom Base plate mount

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Matte Black (BLK): BHMA 622

Bright Chrome (625): BHMA 625

Satin Chrome (626): BHMA 626

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
