Robust Construction & Durability:

Made from high-strength 304 series stainless steel for maximum durability and corrosion resistance

Fire-rated for enhanced safety in high-risk environments

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set or intermediate pivot (handed), or electrical wiring applications

Enhanced Performance & Flexibility:

Supports doors weighing up to 500 pounds, ideal for heavy-duty applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Non-handed design allows for versatile installation options

Material: Made from high-strength 304 series stainless steel

Maximum Door Load: 500 pounds

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Vertical Adjustment Range: 3/16" with positive locking

Handing: Non-handed for versatile installation

Certifications:

Meets ANSI/BHMA A156.4 standards for performance and durability

UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

Sets:

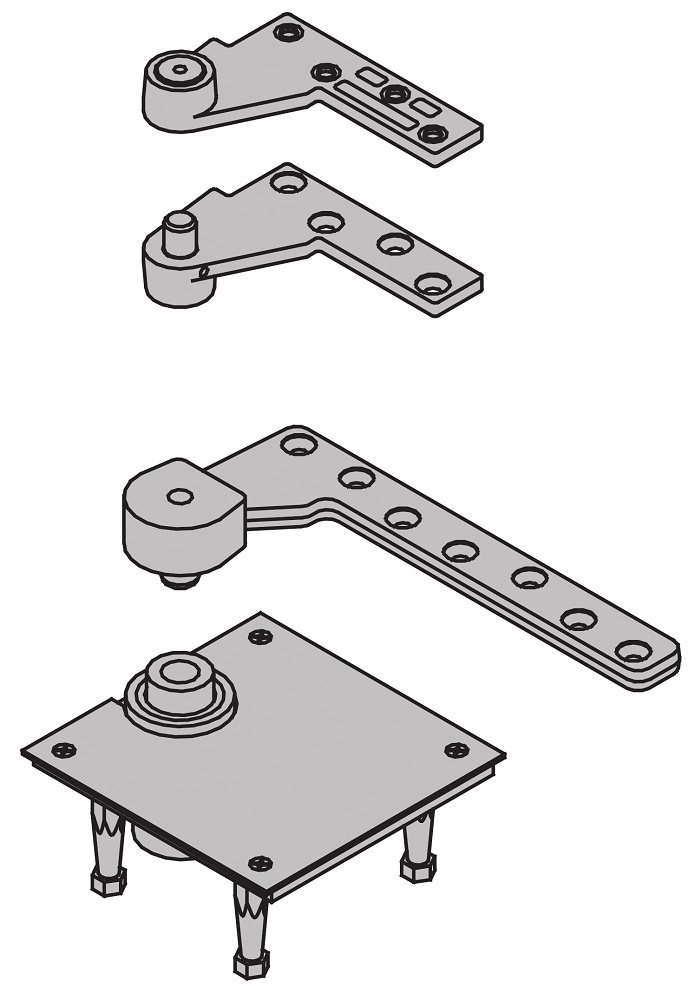

7245F Set: 1 ½" offset pivot with top header and bottom mortised cement case mount, fire-rated (7245F Top and 7245F Bottom)

Intermediate Pivot:

7245F INT: (7244F-7245F), handed as needed for additional support

Electrical Wiring Applications:

For additional electrical wiring applications, consult product support

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
