7244F-7245F INT 1 1/2" Offset Intermediate Pivot, Fire Rated

Finish:
Image of Finish
Image of Finish

Robust Construction & Durability:

Made from 304 series stainless steel for fire-rated applications

Precision bearings ensure smooth and reliable operation



Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available for fire-rated and non-fire-rated offset pivots



Enhanced Performance & Flexibility:

Essential for door heights over 7'0" and for every additional 2'6" as needed

Provides additional support for doors weighing over the pivot set limit; use one additional pivot for every extra 100 pounds

Handed for both left-hand (LH) and right-hand (RH) installations

Material: Made from high-strength 304 series stainless steel

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Handed: Available in LH or RH configurations

Certifications:

Meets ANSI/BHMA A156.4 C07371 standards for performance and durability

UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

7244F-7245F INT: 1 ½" offset intermediate pivot for use with 7244F and 7245F offset pivots; fire-rated

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706

Ives Full Line Catalog

Install Instructions

Templates

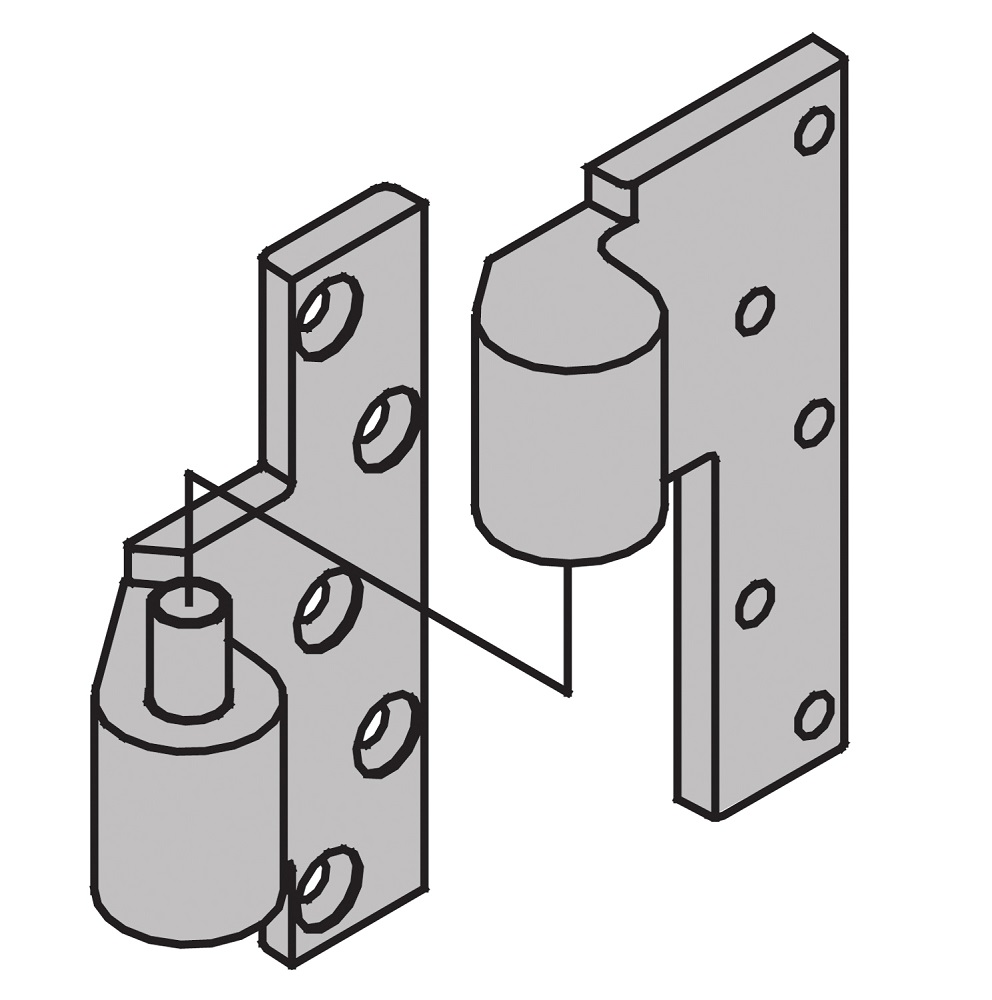

    7244F-7245F INT 1-1/2" Offset Intermediate Pivot, Fire Rated

    Used with 7244F and 7245F offset pivots, Ives offers the 1-½" offset intermediate pivot, fire-rated, designed to provide additional support for fire-rated doors. This pivot ensures compliance with NFPA 80 fire door regulations and is essential for doors over 7 feet tall or weighing more than the pivot set limit.

    Connect with Allegion Team

    Overview

    The Ives 1 ½" offset intermediate pivot is engineered to offer enhanced support for fire-rated doors that exceed the height or weight limitations of standard pivot sets. These pivots are crucial for maintaining the structural integrity and operational efficiency of doors in both residential and commercial settings. Designed for use with doors at least 1 ¾" thick and featuring a 1/8" bevel in 2", these intermediate pivots are handed for both left-hand (LH) and right-hand (RH) installations. Crafted from high-strength 304 series stainless steel, they ensure maximum durability and reliability. Certified to meet ANSI/BHMA standards and UL 10C listed, Ives intermediate pivots are ideal for fire door applications, ensuring compliance with stringent safety requirements.

    Features

    Ideal For

     Durability

      Commercial

     Fire-Rated

     Health Care

     Ease of Install

     Higher Education

     K-12

     Government

     High Security

    Ives 101

    For frequently asked questions, educational resources and technical product materials, visit the Pivots 101 page.
