Robust Construction & Durability:

Made from high-strength 304 series stainless steel for maximum durability and corrosion resistance

Fire-rated for enhanced safety in high-risk environments

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set or intermediate pivot (handed), or power transfer intermediate pivots

Enhanced Performance & Flexibility:

Supports doors weighing up to 1,000 pounds, ideal for ultra-heavy-duty applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Non-handed design allows for versatile installation options

Material: Made from high-strength 304 series stainless steel

Maximum Door Load: 1,000 pounds

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Vertical Adjustment Range: 3/16" with positive locking

Handing: Non-handed for versatile installation. Certifications:

Meets ANSI/BHMA A156.4 C07162 standards for performance and durability

UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

Set:

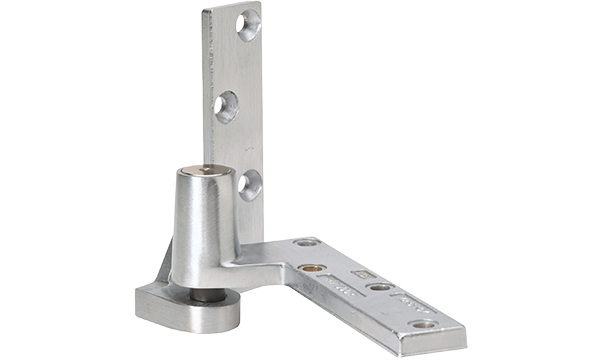

7230F Set: ¾" offset pivot with top header and bottom base mount, fire-rated (7230F Top and 7230F Bottom)

Intermediate Pivot:

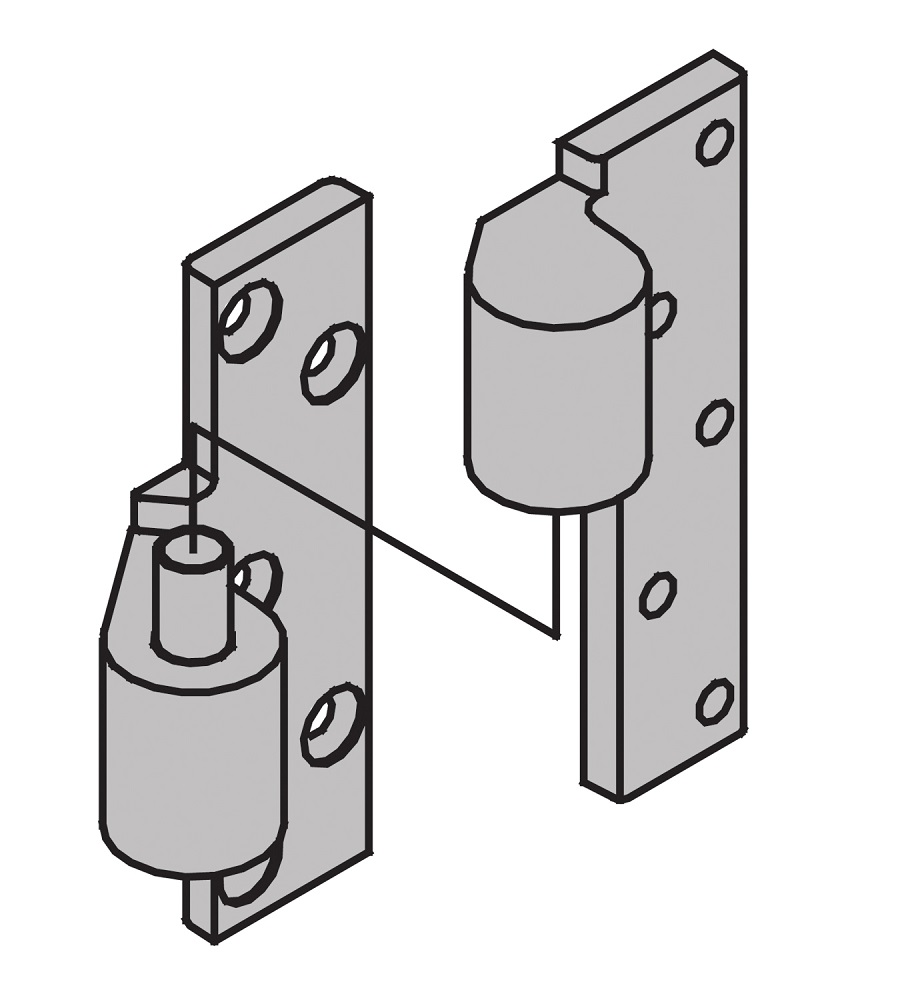

7230F INT: (7230F-7237F), handed as needed for additional support

Power Transfer Intermediate Pivot:

7230FPT INT: (7230F-7237F PT INT), handed for electrical applications

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
