Robust Construction & Durability:

7227: Made from high-strength cast brass

7227F: Made from 304 series stainless steel for fire-rated applications

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set or intermediate pivot (handed), or power transfer intermediate pivots

Enhanced Performance & Flexibility:

Supports doors weighing up to 700 pounds, ideal for ultra-heavy-duty applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Non-handed design allows for versatile installation options

Material:

7227: Made from high-strength cast brass

7227F: Made from 304 series stainless steel

Maximum Door Load: 700 pounds

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Vertical Adjustment Range: 3/16" with positive locking

Handing: Non-handed for versatile installation

Certification:

Meets ANSI/BHMA A156.4 C07121 standards for performance and durability

7227: UL 10C Listed for 20-minute fire rating

7227F: UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

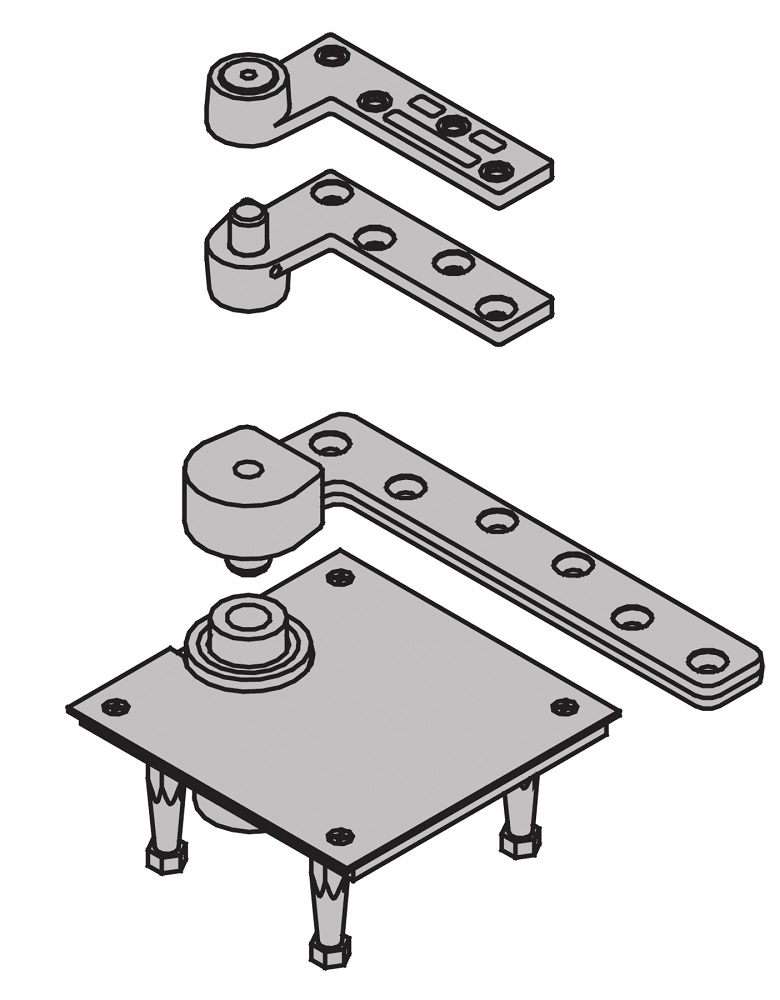

Models:

Sets:

7227 Set: ¾" offset pivot with top header and bottom base mount (7227 Top and 7227 Bottom)

7227F Set: ¾" offset pivot with top header and bottom base mount, fire-rated (7227F Top and 7227F

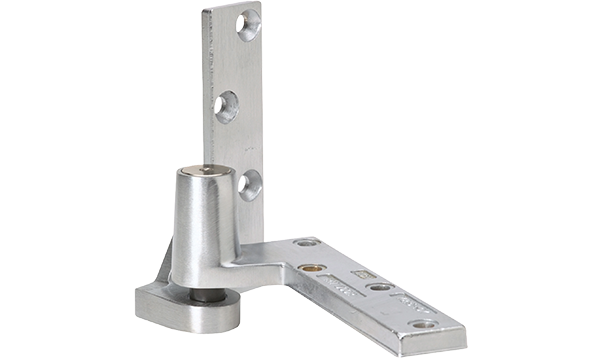

Intermediate Pivot:

7227 INT: (7215-7226-7227), handed as needed

7227F INT: (7215F-7226F-7227F), handed as needed for fire-rated applications

Power Transfer Intermediate Pivot:

7227PT INT: (7215-7226-7227 PT INT), handed for electrical applications

7227FPT INT: (7215F-7226F-7227F PT INT), handed for electrical applications in fire-rated models

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

7227 Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Matte Black (BLK): BHMA 622

Bright Chrome (625): BHMA 625

Satin Chrome (626): BHMA 626

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706

7227F Finishes:

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
