Robust Construction & Durability:

7215: Made from high-strength cast brass

7215F: Made from 304 series stainless steel for fire-rated applications

Optional WP resistant bottom pivot for improved corrosion resistance available in US26D (626) or US32D (630) finishes

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set, intermediate, or power transfer intermediate pivots

Available in fire-rated and non-fire-rated

Enhanced Performance & Flexibility:

Supports doors weighing up to 500 pounds, ideal for heavy-duty applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Handed for both left-hand (LH) and right-hand (RH) installations

Material:

7215: Made from high-strength cast brass

7215F: Made from 304 series stainless steel

Maximum Door Load: 500 pounds

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Vertical Adjustment Range: 3/16" with positive locking

Handing: Available in LH or RH configurations

Certifications:

Meets ANSI/BHMA A156.4 C07131 standards for performance and durability

7215: UL 10C Listed for 20-minute fire rating

7215F: UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

Sets:

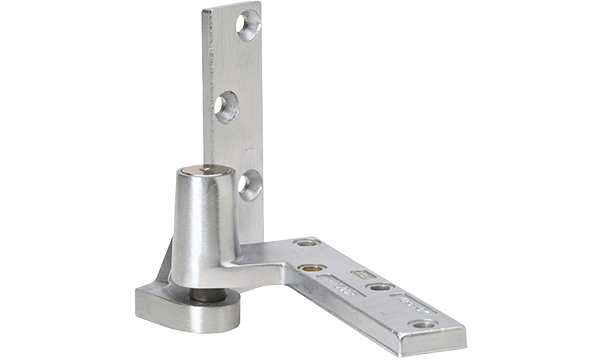

7215 Set: ¾" offset pivot with top header mount (7215 Top and 7215 Bottom)

7215F Set: ¾" offset pivot with top header mount, fire-rated (7215F Top and 7215F Bottom)

Intermediate Pivots:

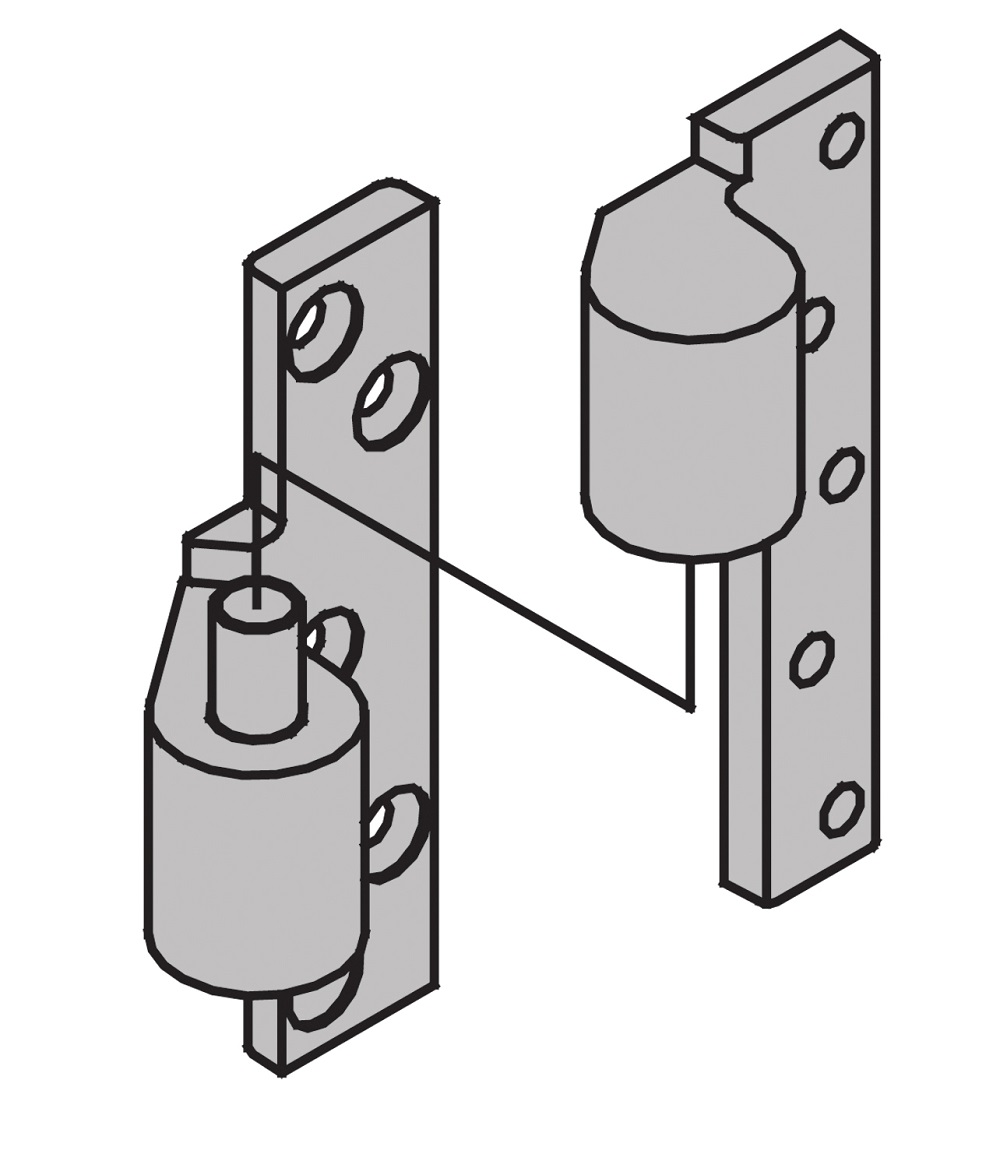

7215 INT: (7215-7226-7227), handed as needed

7215F INT: (7215F-7226F-7227F), handed as needed for fire-rated applications

Power Transfer Intermediate Pivot:

7215PT INT: (7215-7226-7227 PT INT), handed for electrical applications

7215FPT INT: (7215F-7226F-7227F PT INT), handed for electrical applications in fire-rated models

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

7215 and 7215F offer varying finishes. View the Ives catalog for the full finish list.
