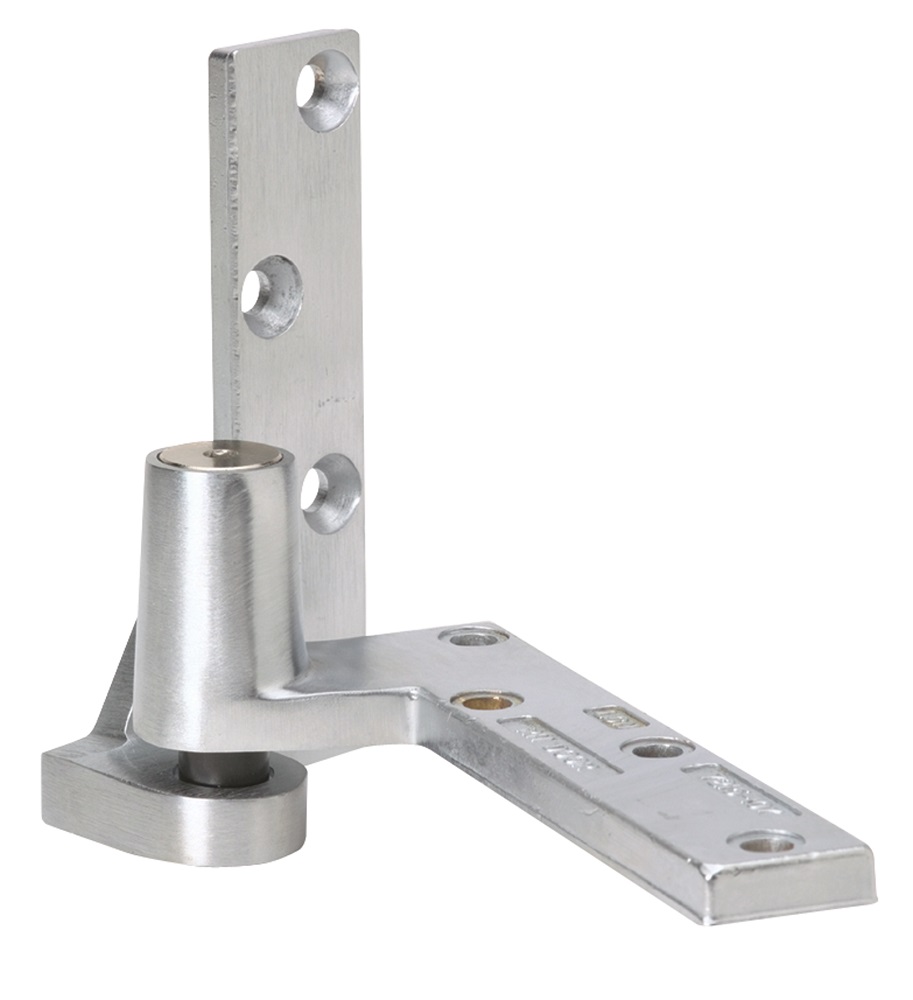

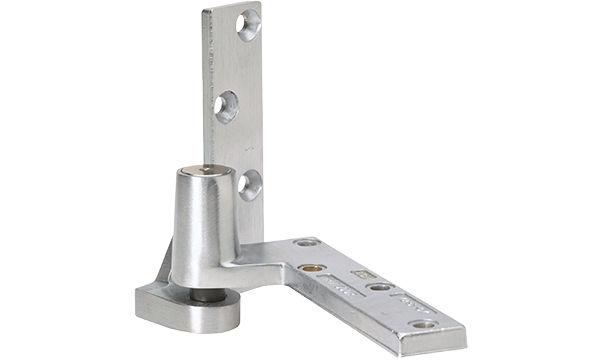

7215-7226-7227 INT/ 7215F-7226F-7227F INT 3/4" Offset Intermediate Pivot

Finish:
Image of Finish
Image of Finish

Robust Construction & Durability:

7215-7226-7227: Made from high-strength cast brass

7215F-7226F-7227F: Made from 304 series stainless steel for fire-rated applications

Precision bearings ensure smooth and reliable operation



Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available for fire-rated and non-fire-rated offset pivots



Enhanced Performance & Flexibility:

Essential for door heights over 7'0" and for every additional 2'6" as needed

Provides additional support for doors weighing over the pivot set limit; use one additional pivot for every extra 100 pounds

Handed for both left-hand (LH) and right-hand (RH) installations

Material:

7215-7226-7227: Made from high-strength cast brass

7215F-7226F-7227F: Made from 304 series stainless steel

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Handed: Available in LH or RH configurations

Certifications:

Meets ANSI/BHMA A156.4 standards for performance and durability

7215-7226-7227: UL 10C Listed for 20-minute fire rating

7215F-7226F-7227F: UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

7215-7226-7227 INT: ¾" offset intermediate pivot for use with 7215, 7226, and 7227 offset pivots

7215F-7226F-7227F INT: ¾" offset intermediate pivot for use with 7215F, 7226F, and 7227F offset pivots; fire-rated

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

7215-7226-7227 INT Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Matte Black (BLK): BHMA 622

Bright Chrome (625): BHMA 625

Satin Chrome (626): BHMA 626

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706



7215F-7226F-7227F INT Finishes:

Bright Stainless (US32): BHMA 629

Satin Stainless (US32D): BHMA 630

Matte Black (BLK): BHMA 631

Bright Brass (US3): BHMA 632

Satin Bronze (US10): BHMA 639

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706

Ives Full Line Catalog

Install Instructions

Templates

    7215-7226-7227 INT/7215F-7226F-7227F INT 3/4" Offset Intermediate Pivot (Fire & Non-Fire Rated Models)

    Used with 7215, 7226, and 7227 fire-rated and non-fire-rated offset pivots, Ives offers ¾" offset intermediate pivots are designed to provide additional support for doors, ensuring compliance with NFPA 80 fire door regulations. Available in both fire-rated and non-fire-rated models, these pivots are essential for doors over 7 feet tall or weighing more than the pivot set limit.

    Connect with Allegion Team

    Overview

    Ives ¾" offset intermediate pivots are engineered to offer enhanced support for doors that exceed the height or weight limitations of standard pivot sets. Used with 7215, 7226, and 7227 fire-rated and non-fire-rated offset pivots, these pivots are crucial for maintaining the structural integrity and operational efficiency of doors in both residential and commercial settings. Designed for use with doors at least 1 ¾" thick and featuring a 1/8" bevel in 2", these intermediate pivots are handed for both left-hand (LH) and right-hand (RH) installations. Crafted from high-strength cast brass or 304 series stainless steel for fire-rated models, they ensure maximum durability and reliability. Certified to meet ANSI/BHMA standards and UL 10C listed, Ives intermediate pivots are ideal for fire door applications, ensuring compliance with stringent safety requirements.

    Features

    Ideal For

     Durability

      Commercial

     Fire-Rated

     Health Care

     Ease of Install

     Higher Education

     K-12

     Government

     High Security

    Ives 101

    For frequently asked questions, educational resources and technical product materials, visit the Pivots 101 page.
