Robust Construction & Durability:

Made from high-strength cast brass for maximum durability

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set or intermediate pivot

Available in top header or jamb mounting styles

Enhanced Performance & Flexibility:

Supports doors weighing up to 200 pounds, ideal for heavy-duty - applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Handed for both left-hand (LH) and right-hand (RH) installations

Material: Made from high-strength cast brass

Maximum Door Load: 200 pounds

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Vertical Adjustment Range: 3/16" with positive locking

Handing: Available in LH or RH configurations

Certifications:

Meets ANSI/BHMA A156.4 C07131 standards for performance and durability

UL 10C Listed for 20-minute fire rating, ensuring safety and compliance

Models:

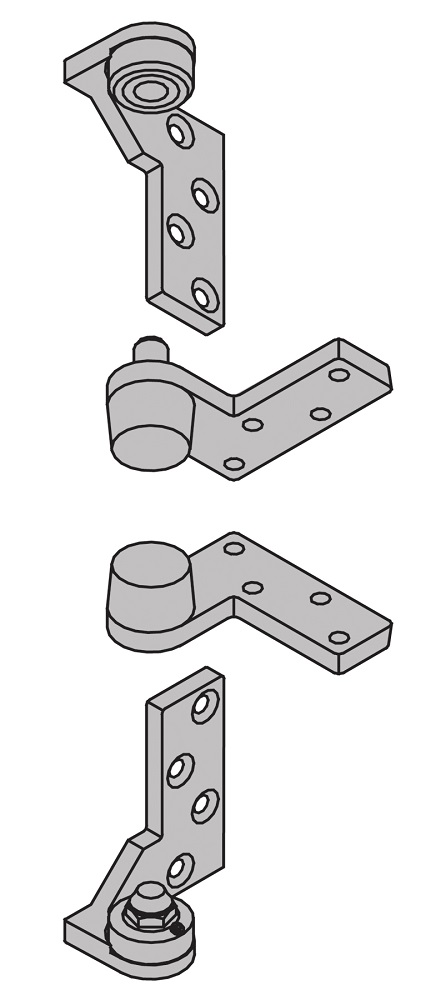

7212 Set: ¾" offset pivot with top header mount (7212 Top and 7212 Bottom)

7212V Set: ¾" offset pivot with top jamb mount (7212V Top and 7212 Bottom)

Intermediate Pivot: 7212 INT (7212-7212V-7222), handed as needed for additional support

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Matte Black (BLK): BHMA 622

Bright Chrome (625): BHMA 625

Satin Chrome (626): BHMA 626

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
