Robust Construction & Durability:

Made from high-strength cast brass for maximum durability

Available in a variety of finishes to suit different design aesthetics

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Enhanced Performance and Flexibility:

Essential for door heights over 7'0" and for every additional 2'6" as needed

Provides additional support for doors weighing over the pivot set limit; use one additional pivot for every extra 100 pounds

Handed for both left-hand (LH) and right-hand (RH) installations

Material: Made from high-strength cast brass

Recommended Door Thickness: Minimum 1 ¾" with 1/8" bevel in 2"

Handed: Available in LH or RH configurations

Certifications:

Meets ANSI/BHMA A156.4 C07382 standards for performance and durability

UL 10C Listed for 3-hour fire rating, ensuring safety and compliance

Models:

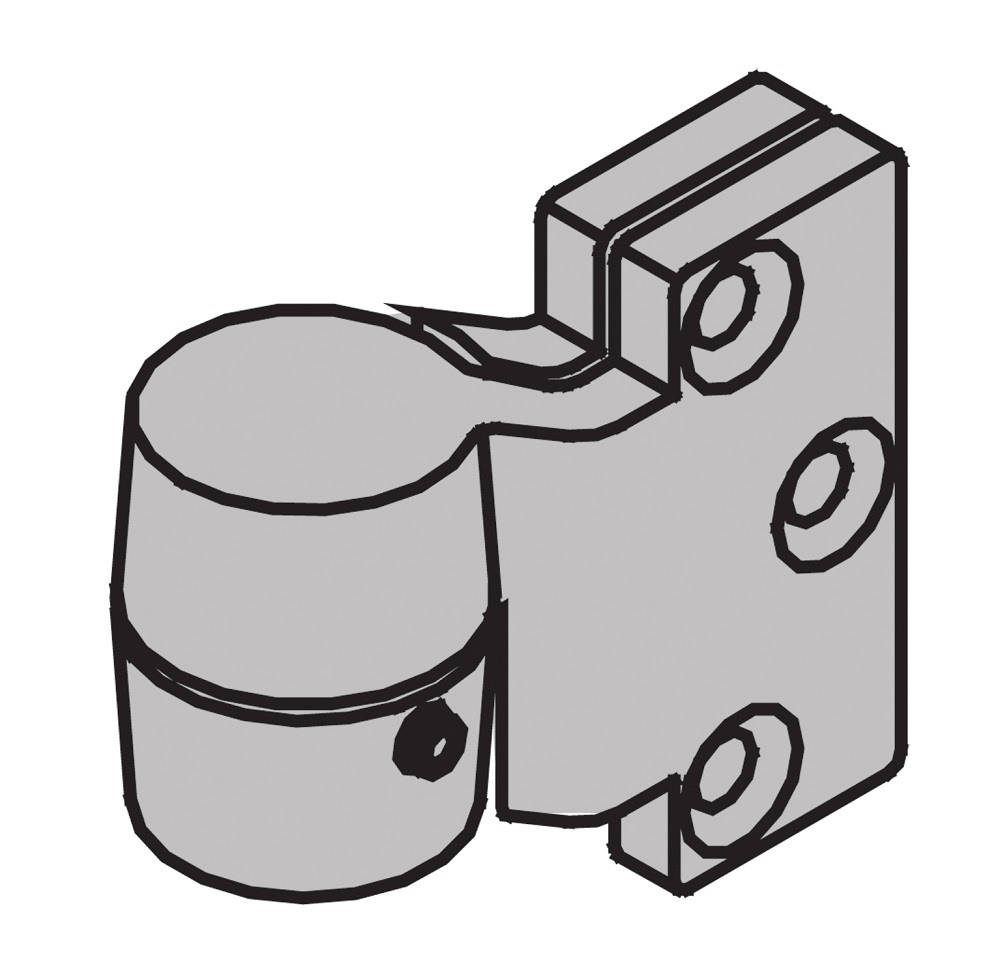

7212-7212V-7222 INT: ¾" offset intermediate pivot for use with 7212, 7212V, and 7222 offset pivots

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Finishes:

Bright Brass (US3): BHMA 605

Satin Brass (US4): BHMA 606

Satin Bronze (US10): BHMA 612

Oil Rubbed Bronze (US10B): BHMA 613

Satin Nickel (US15): BHMA 619

Matte Black (BLK): BHMA 622

Bright Chrome (625): BHMA 625

Satin Chrome (626): BHMA 626

Aged Bronze (643e/716)

Aluminum Painted (SP28): BHMA 689

Bronze Painted (SP10): BHMA 691

Dark Bronze Painted (SP313/US10BE): BHMA 695

Brass Painted (SP4): BHMA 706
