Secure Power Transfer: Ensures efficient and secure power transfer from the door frame to the edge of a swinging door

Compatibility: Standard cutouts fit Von Duprin EPT-2, EPT-10, and PNT-1 devices, ensuring compatibility with widely used electrical products

Custom Cutouts: Factory modifications available to accommodate most electrical frame-to-door requirements with special templates upon request

Versatile Applications: Suitable for electronic access control systems, automated locking mechanisms, and other powered hardware

Ordering Instructions:

When ordering pin and barrel hinges with electric power transfer, please provide the following information:

1. Door size

2. Handing: LH (Left Hand), RH (Right Hand), LHR (Left Hand Reverse), or RHR (Right Hand Reverse)

3. Manufacturer and model number of the electrical product being used: For example, Von Duprin EPT2

Due to varying clearances between door and frame manufacturers and the influence of door hardware locations, it is always recommended to contact Ives Customer Technical Support for specific template information. For general reference, the following are standard locations for Von Duprin EPT2 or EPT10 cutouts, measured from the top edge of the door to the centerline of the cutout:

Standard lengths and cut out:

83" hinge: 30"

85" hinge: 32"

95" hinge: 42"

120" hinge: 67"

By providing these details, you can ensure a precise and effective installation that meets your specific electrical and security needs.

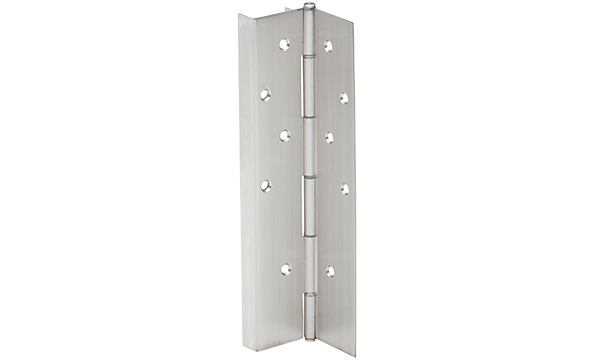

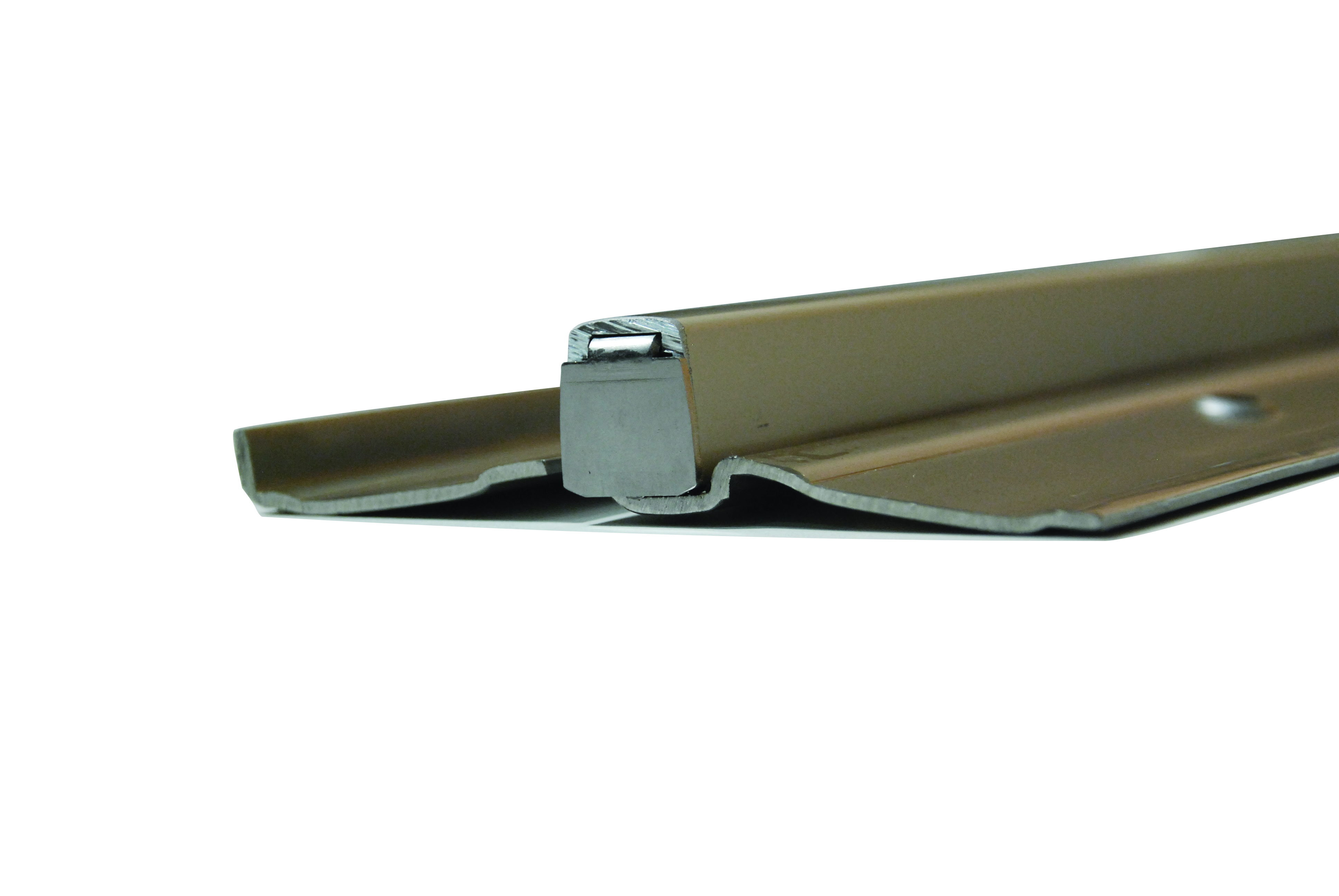

Electric power transfer prep (700, 705, 715, 700CS, 715CS models only)

Prepped standard for Von Duprin Electric Power Transfer (EPT-2 or EPT-10)

Learn more about Von Duprin EPT offering here
