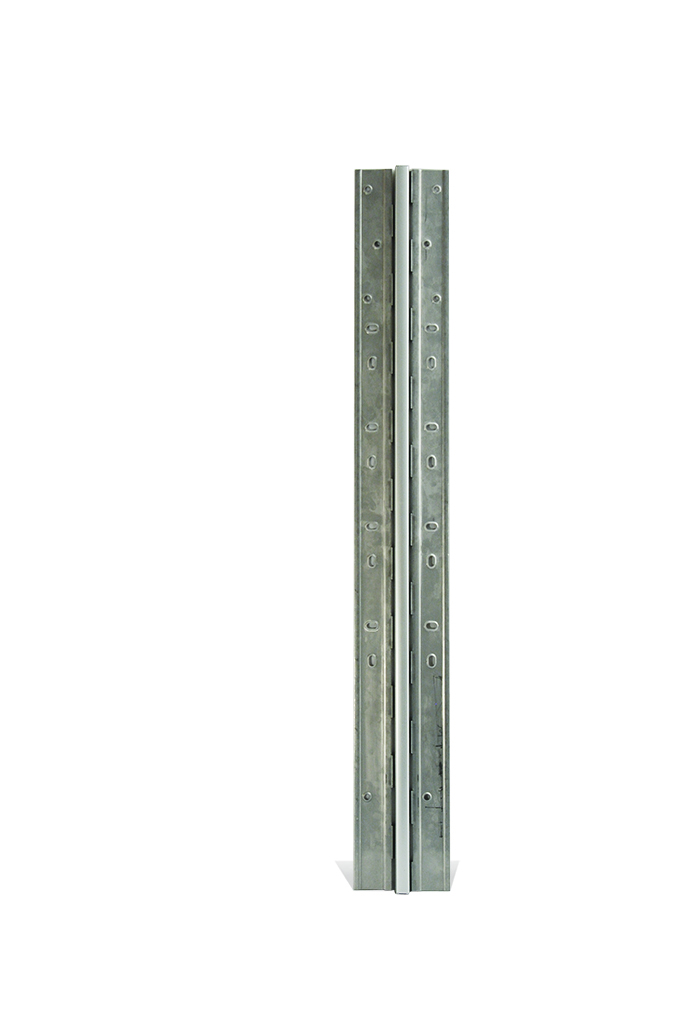

Seamless Design:

Maintains a one-piece appearance on the cover side of the hinge, preserving the clean aesthetic of aluminum geared continuous hinges

Easy Installation and maintenance:

Installs with the same 5/16" clearance as aluminum geared hinges and works with all decorative cover finishes

The panel can quickly slip in and out of the hinge for easy maintenance and replacement

Allegion Connect Option: Available with the Allegion Connect 8-pin Connector, simplifying connections to other electrical devices

Durability and Reliability

Made from stainless steel and tested to withstand up to 2.5 million cycles, ensuring long-lasting performance

Provides reliable power transfer from the frame to the door, supporting various electrified hardware

Rated at 50 volts AC/DC with a continuous 3.5 amp and a 16 amp pulse (maximum pulse of 400 milliseconds), compatible with 4-wire and 8-wire installations

Ordering Instructions:

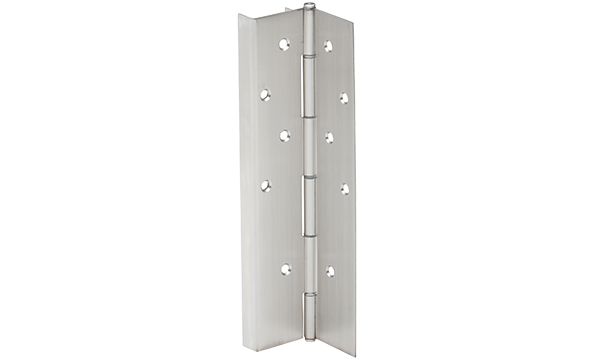

When ordering pin and barrel hinges with electric power transfer, please provide the following information:

1. Door size

2. Handing: LH (Left Hand), RH (Right Hand), LHR (Left Hand Reverse), or RHR (Right Hand Reverse)

3. Manufacturer and model number of the electrical product being used: For example, Von Duprin EPT2

Due to varying clearances between door and frame manufacturers and the influence of door hardware locations, it is always recommended to contact Ives Customer Technical Support for specific template information. For general reference, the following are standard locations for Von Duprin EPT2 or EPT10 cutouts, measured from the top edge of the door to the centerline of the cutout:

Standard lengths and cut out:

83" hinge: 43 13⁄16"

85" hinge: 44 29⁄32"

95" hinge: 55 9⁄32"

120" hinge: 79 1⁄2"

By providing these details, you can ensure a precise and effective installation that meets your specific electrical and security needs.
