Durability:

The standard 715 Series pin and barrel continuous hinges feature twin self-lubricated nylon bearings with a stainless steel pin

The CS Series includes medical-grade, patented nylon winged bearings and the XY adjustability feature for better door alignment during installation

Ease of install:

Ives standard 715 Series pin and barrel continuous hinges can be cut to length during installation. The unique mounting pattern allows cutting up to 6" from the bottom while still maintaining double row fasteners. If cut more than 13.5", other modifications may be necessary

The CS Series of stainless steel hinges can be cut to size in the field. For aftermarket installations, horizontal slots in the leaves allow for lateral adjustment after the door has been secured to the frame

Aesthetics:

The CS Series patented covers hide the unsightly pin and barrel of the standard pin and barrel hinges, giving the CS Series continuous hinge a stylish appearance to accompany heavy duty performance

Warranty:

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12-month warranty from time of shipment. Learn more at us.allegion.com/warranty

Application:

Non-Handed

For square edge single or door pairs

Up to 200 lbs., no door reinforcement is required. For doors between 200 and 300 lbs., a 16 gauge channel in the frame is required

For doors up to 600 lb. (max door width of 4'0"), rivet nuts are required in the frame in addition to the frame reinforcement

For door weight reinforcement requirements by model, view the installation instructions and Ives catalog for detail

Material substrate:

14 Gauge type 304 stainless steel

Certifications:

Meets ANSI/BHMA 156.26

UL10C listed (3 hour)

Fasteners:

715 Series;10 X 1⁄2" Self drilling, self tapping screws or 10 X 1" Wood screws

715 CS Series: 12-24 X 3⁄4" Self drilling, self tapping screws

Models:

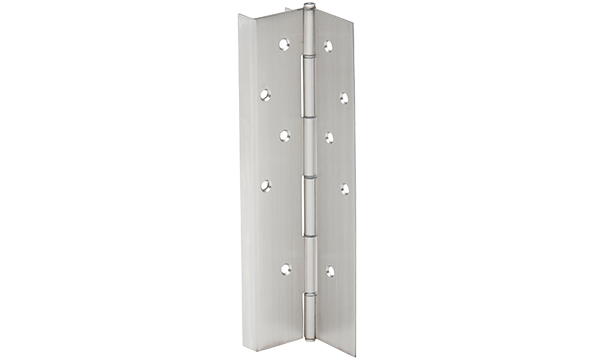

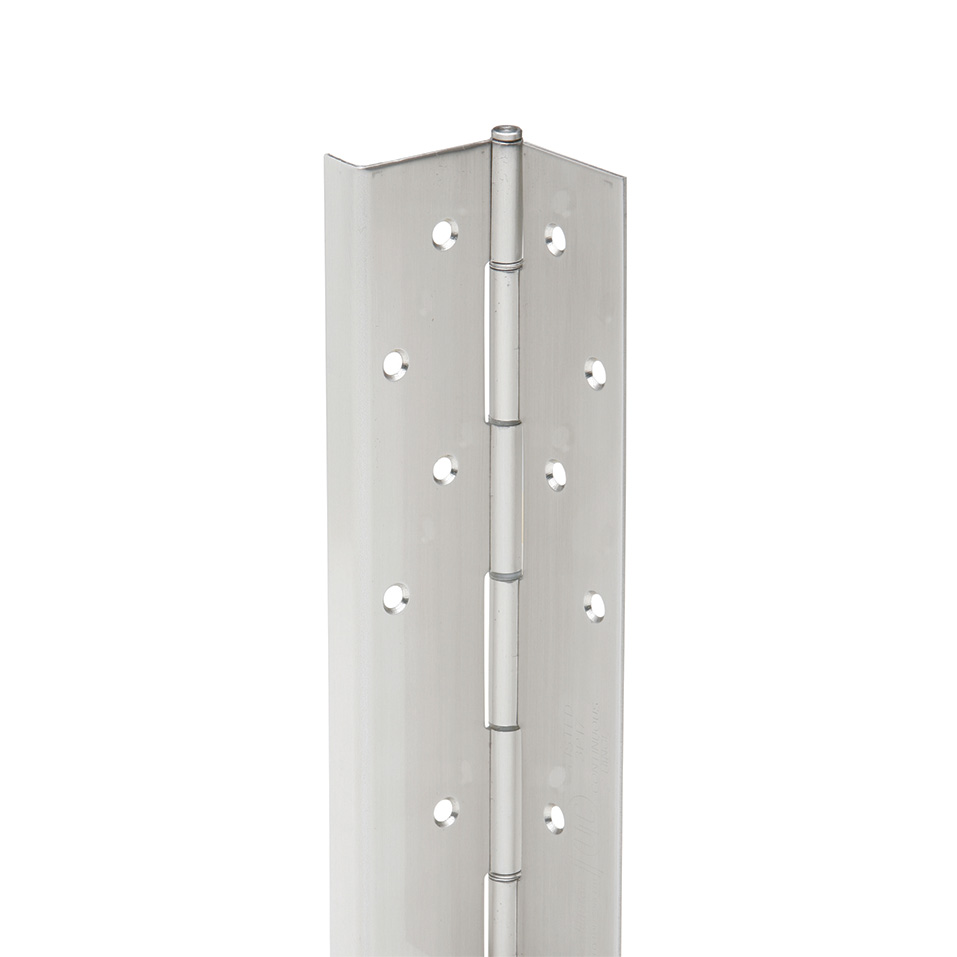

715: Full mortise, half wrap pin and barrel continuous hinge (stainless steel)

715CS: Full mortise, half wrap pin and barrel continuous hinge with decorative cover

Available lengths:

83", 85", 95", 120"

Electric power transfer prep (EPT)

Electric through wire (TW8); not available on CS Series

Hospital tips; not available on CS series

Security fasteners – torx

Wood fasteners

Finishes:

715 Series available in 630 (US32D) satin stainless steel

715CS Series available in a wide variety of finishes to match your other door hardware. See Ives catalog for a list of available finishes
