Durability:

The 711 Series pin and barrel continuous hinges feature twin self-lubricated nylon bearings with a stainless steel pin, providing long-lasting performance and reliability

 Edge guard design protects your door from dings and gouges from carts and gurneys, while providing clean lines and aesthetic appearance

Ease of install:

Ives standard 711 Series pin and barrel continuous hinges can be cut to length during installation. The unique mounting pattern allows cutting up to 6" from the bottom while still maintaining double row fasteners. If cut more than 13.5", other modifications may be necessary

Warranty:

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12-month warranty from time of shipment. Learn more at us.allegion.com/warranty

Application:

Non-Handed

For square edge single or door pairs

Up to 200 lbs., no door reinforcement is required. For doors between 200 and 300 lbs., a 16 gauge channel in the frame is required

For doors up to 600 lb. (max door width of 4'0"), rivet nuts are required in the frame in addition to the frame reinforcement

For door weight reinforcement requirements by model, view the installation instructions and Ives catalog for details

Material substrate:

14 Gauge type 304 stainless steel

Certifications:

Meets ANSI/BHMA 156.26

UL10C listed (3 hour)

Fasteners:

10 X 1⁄2" Self drilling, self tapping screws or 10 X 1" Wood screws

Models:

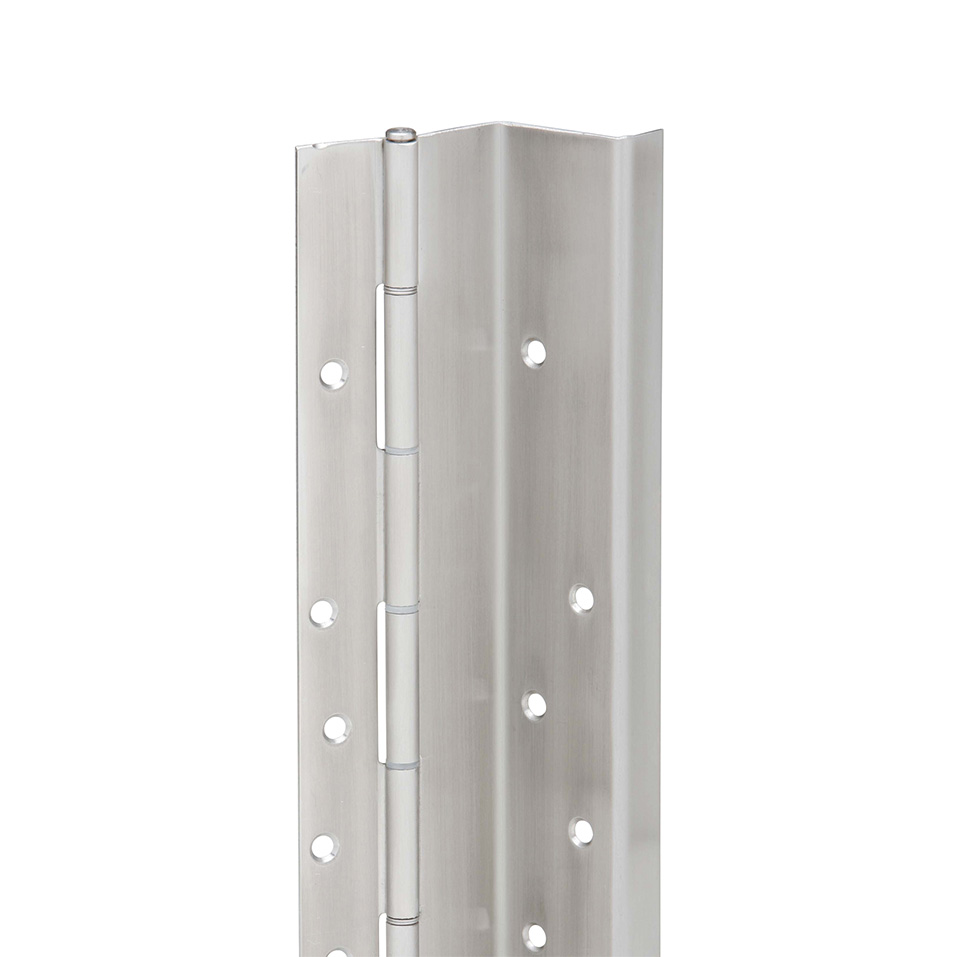

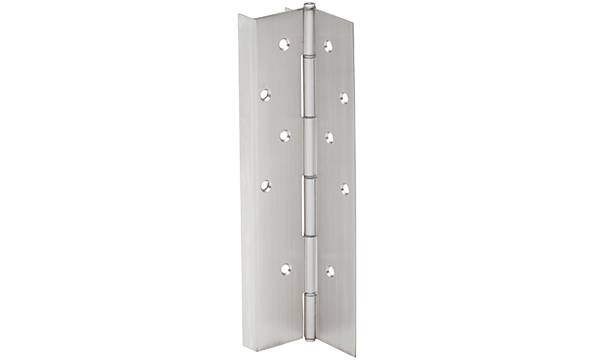

711: Full surface, swing clear, edge guard pin and barrel continuous hinge (stainless steel)

Available lengths:

83", 85", 95", 120"

Hospital tips (HT)

Security fasteners – torx

Wood fasteners

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Available in 630 (US32D) satin stainless steel
