Durability:

The 705 Series pin and barrel continuous hinges features twin self lubricated nylon bearings with a stainless steel pin 1 ⁄4" diameter pin

Ease of install:

Ives standard 705 Series pin and barrel continuous hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary

Warranty:

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12-month warranty from time of shipment. Learn more at us.allegion.com/warranty

Application:

Non-Handed

Flush mounted, no inset

For bevel or square edge single or door pairs

Up to 200 lbs., no door reinforcement is required. For doors between 200 and 300 lbs., a 16 gauge channel in the frame is required

For doors up to 600 lb. (max door width of 4'0"), rivet nuts are required in the frame in addition to the frame reinforcement

For door weight reinforcement requirements by model, view the installation instructions and Ives catalog for detail

Material substrate:

14 Gauge type 304 stainless steel

Certifications:

Meets ANSI/BHMA 156.26

UL10C listed (3 hour)

Fasteners:

#10-32 x 3⁄4" Stainless screw and Adjusta-Stud* fastener

 #10 X 1/2" Self drilling, self tapping screws

 #10 X 1" Wood screws

Models:

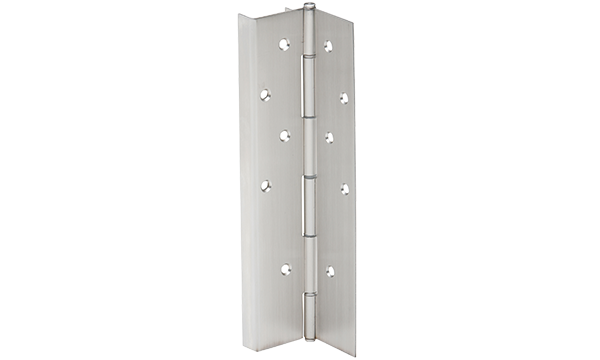

705 Full mortise, full wrap pin and barrel continuous hinge (stainless steel)

Available lengths:

83", 85", 95", 120"

Electric power transfer prep (EPT)

Electric through wire (TW8)

Hospital tips

Security fasteners – torx

Wood fasteners

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

Available in 630 (US32D) satin stainless steel
