Durability:

The standard 700 Series  pin and barrel continuous hinges features twin self lubricated nylon bearings with a stainless steel pin

The CS Series includes medical grade, patented nylon winged bearings. They also include the XY adjustability feature which allows for better door alignment during installation

Ease of install:

Ives standard 700 Series pin and barrel continuous hinges can be cut to length during installation. The unique mounting pattern allows to cut up to 6" from bottom while still having double row fasteners. If cut more than 13.5", other modifications may be necessary

The CS Series of stainless steel hinges can be cut to size in the field. For aftermarket installations, horizontal slots in the leaves allow for lateral adjustment after the door has been secured to the frame

Only available on 700CS, the Thru Wire Panel design for full mortise applications (TWP) easily mounts and removes from mortise side of door with no need to remove cover or pull from opposite side of door

Aesthetics:

The CS Series patented covers hide the unsightly pin and barrel of the standard pin and barrel hinges, giving the CS Series continuous hinge a stylish appearance to accompany heavy duty performance

Warranty:

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12-month warranty from time of shipment. Learn more at us.allegion.com/warranty

Application:

Non-Handed

For bevel or square edge single or door pairs

Up to 200 lbs., no door reinforcement is required. For doors between 200 and 300 lbs., a 16 gauge channel in the frame is required

For doors up to 600 lb. (max door width of 4'0"), rivet nuts are required in the frame in addition to the frame reinforcement

For door weight reinforcement requirements by model, view the installation instructions and Ives catalog for detail

Material substrate:

14 Gauge type 304 stainless steel

Certifications:

Meets ANSI/BHMA 156.26

UL10C listed (3 hour)

Fasteners:

700 Series;10 X 1⁄2" Self drilling, self tapping screws or 10 X 1" Wood screws

700CS Series: 12-24 X 3⁄4" Self drilling, self tapping screws

Models:

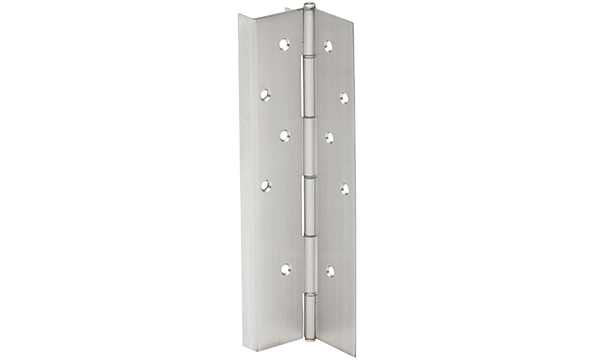

700 - Full mortise stainless steel, pin and barrel continuous hinge

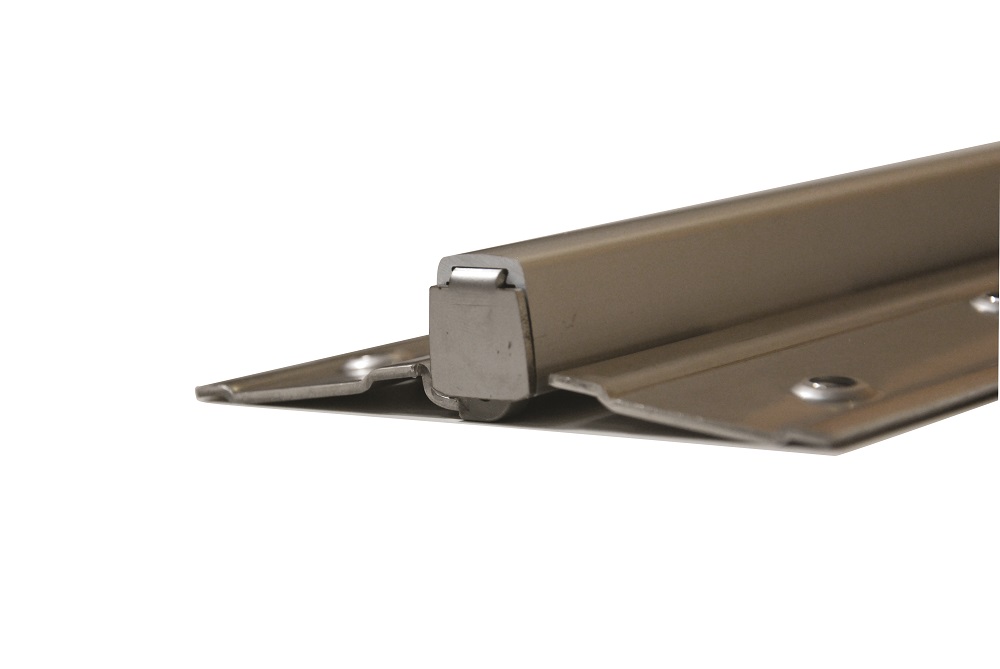

700CS – Full mortise, stainless steel pin and barrel continuous hinge with decorative cover

Available lengths:

83", 85", 95", 120"

Available options:

Electric power transfer prep (EPT)

Through wire panel (TWP); available only on 700CS Series hinges

Electric through wire (TW8)

Hospital tips; not available on CS series

Security fasteners – torx

Wood fasteners

Finishes:

700 Series available in 630 (US32D) satin stainless steel

700CS Series available in a wide variety of finishes to match your other door hardware. See Ives catalog for a list of available finishes.
