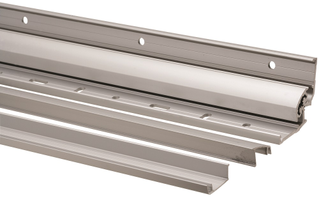

Rounded, center loaded, interlocking bearing design

Helps deflect and handle the opening and closing of the door plus any abuse the door will receive including environmental circumstances. All sizes have 37 flex-resistant, self-lubricating centered bearings, improving the quality and the longevity of the performance.

Ease of field modifications

The unique mounting pattern of the XY hinge allows it to be cut down to 69" while still having double row fasteners regardless of the original length of the hinge. Non-handed for custom cut lengths.

Example: A 119" hinge can have 25" removed from each end to make it a 69" long hinge.

Lifetime warranty

Ives continuous hinges carry a limited lifetime warranty with exception of electrified continuous hinges, which carry a 12 month warranty from time of shipment. Learn more at us.allegion.com/warranty

Exceeds Grade 1 testing

1 million+ cycles on a 150LB and 300LB door

Curved smooth cover design

For aesthetics while also eliminating pinch points

Frame Guidance Lip Extension

Lip extends 0.200 for retrofits to cover existing heavy-weight hinge preps

Applications:

Ideal for all aluminum entrances, heavy, high-trafficked doors, or higher security doors in aftermarket or new construction applications

For doors weighing up to 550 pounds

Hinge edge clearance for bevel (11/32") or square (5/16") edge doors

1⁄16" door inset

Max door width 4' 0"

Max door height 10' 0"

Certifications:

ANSI A156.16 Gade 1 150lb and 300lb door test

UL10C (90 min.)

Fasteners:

12-24 x 3⁄4" Steel self drilling / self tapping hex head screw

1⁄4-20 x 3⁄4" Phillips head machine screws and pan head through bolts

Models Available:

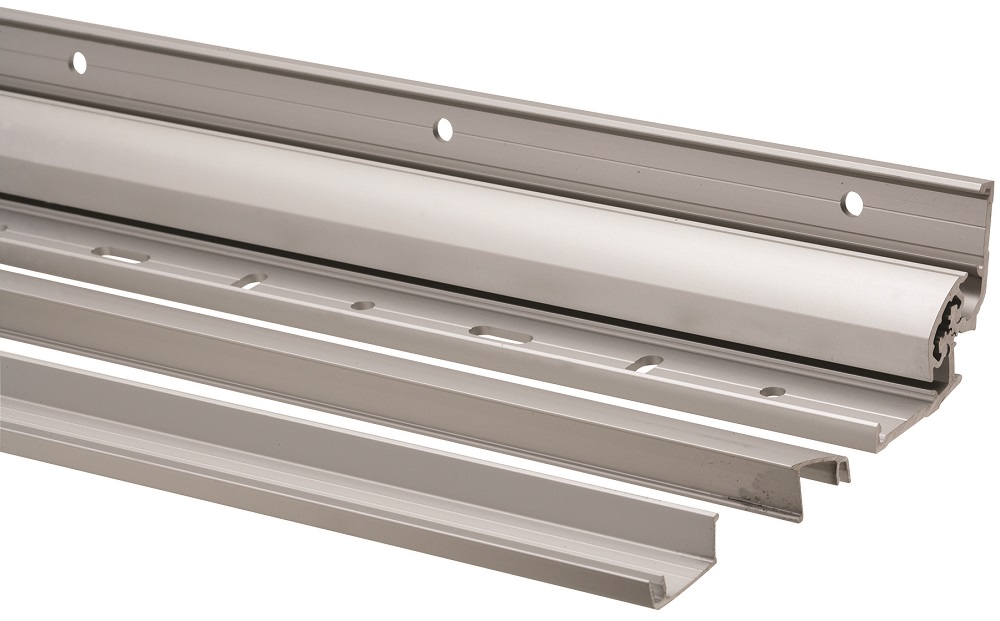

157XY Full surface - center pivot

Available lengths:

83"

95"

119"

Optional mounting hardware

TEKWD 1 ⁄2 Self drill, self tap 1⁄2 wood

WD Wood door and frame

* Not available on 041XY swing clear

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.

BHMA Description Substrate Finish

628 Clear Aluminum Anodized Aluminum US28

710 Dark Bronze Anodized Aluminum 313AN

711 Black Anodized Aluminum 315AN
