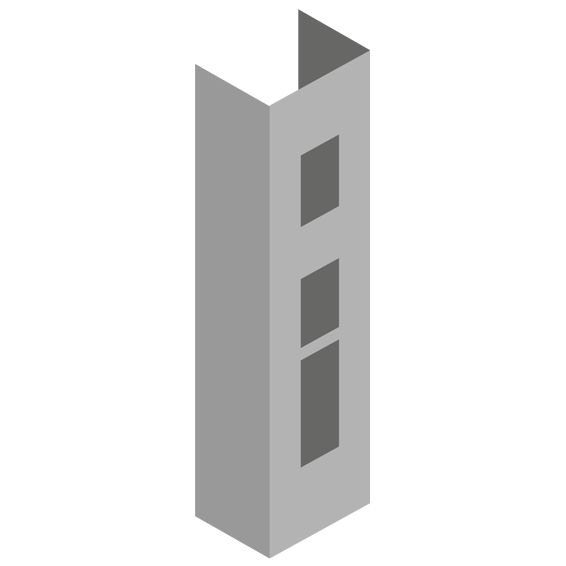

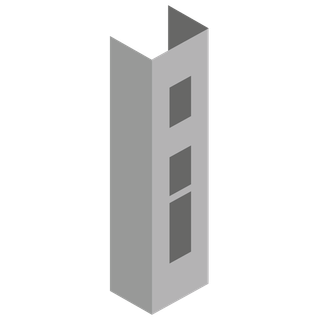

Enhanced Durability:

Made from high-quality stainless steel, brass, or aluminum, these edge guards extend the life of doors by protecting their vulnerable edges

Wide Range of Options:

21 different types available, including beveled, non-beveled, bullnose, and overlap, ensuring suitability for all door types and applications

Available in lengths ranging from 12” to 120” with 1/8” increments, and offered in 10 standard cutout options for accommodating different hardware

UL labeled models available for fire-rated applications, providing added safety

Flexible Installation:

Suitable for hinge or lock side protection on both single and double acting doors

• Material: 0.050” thick stainless steel, brass, or aluminum
• Sizes: Available for doors 1 ¾”, 2”, or 2 ¼” thick
• Lengths: Customizable from 12” to 120” in 1/8” increments
• Certifications: Available with UL labeling for fire-rated doors
• Cutout Options: 10 standard cutout options for locks, hinges, and other hardware

Available Models:

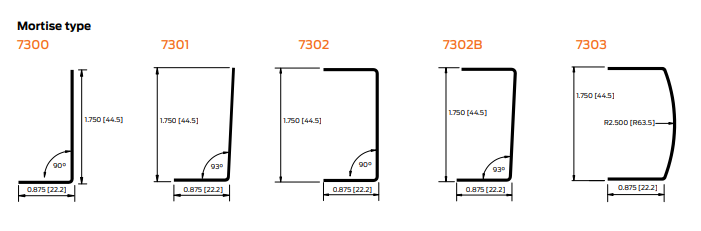

Mortise:

7300 Mortise

7301 Mortise, beveled

7302 Mortise, wrap

7302B Mortise, wrap beveled

7303 Mortise, bull

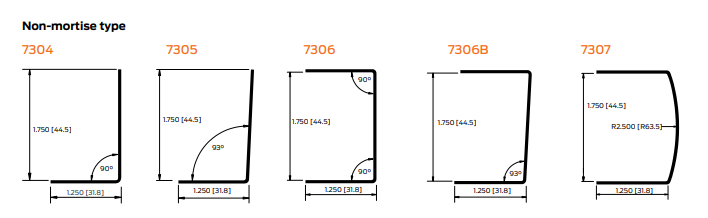

Non-Mortise:

7304 Non-mortise

7305 Non-mortise, beveled

7306 Non-mortise, wrap

7306B Non-mortise, wrap beveled

7307 Non-mortise, bull

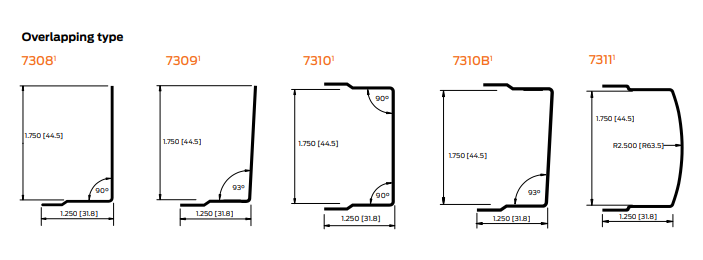

Overlap:

7308 Overlap

7309 Overlap, beveled

7310 Overlap, wrap

7310B Overlap, wrap beveled

7311 Overlap, bull

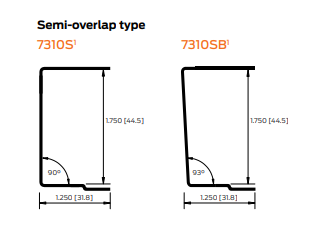

Semi-Overlap:

7310S Semi-overlap, wrap

7310SB Semi-overlap, wrap beveled

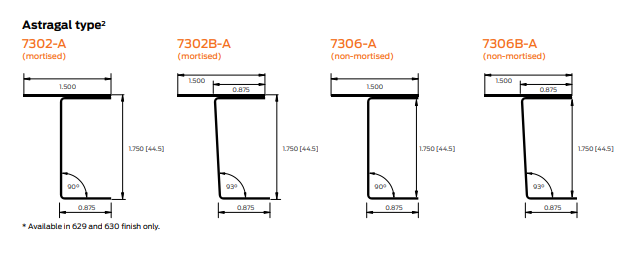

Astragal:

7302-A Mortise, astragal

7302B-A Mortise, astragal beveled

7306-A Non-mortise, astragal

7306B-A Non-mortise, astragal beveled

Cutout options and locations:

Measure bottom of edge guard to center line (CL) of cutout. If offset pull or offset push is required call customer care.

Option A:

1 1⁄8 x 2 3⁄4" No. 1 cylinder strike*

1 1⁄4 x 4 7⁄8" No. 2 ASA strike**

1 x 6 3⁄4" No. 3 auto and constant latch flush bolt

1 x 8 1 ⁄2" No. 4 constant latch flush bolt-wood doors

1 1⁄4 x 8" No. 5 mortise lock

1 1⁄8 x 2 1⁄4" No. 6 latch bolt

1 x 4 1⁄2" No. 7 hinge

1 x 5" No. 8 hinge

1" diameter No. 92 auxiliary fire latch inactive

1 x 1 49⁄64" No. 102 auxiliary fire latch active

Location A Bottom to CL

Option B Same options as listed above

Location B Bottom to CL

Option C Same options as listed above

Location C Bottom to CL

* Provided center as standard

** Cutouts are measured 6" bottom to center line
