1000 Series Residential Plain Bearing Hinges

Finish:
Image of Finish
Image of Finish

Features removable pin and cap, making them compatible with Ives hinge pin door stop models (69, 70, 72, 73)

Square or rounded edges (5/8" or 1/4" radius)

Includes 3 hinges per package

Applications:

Recommended for doors weighing less than 70 lbs. and not exceeding 3'0" x 7'0"

Recommended for low frequency, residential applications

Not recommended for use with a door closer

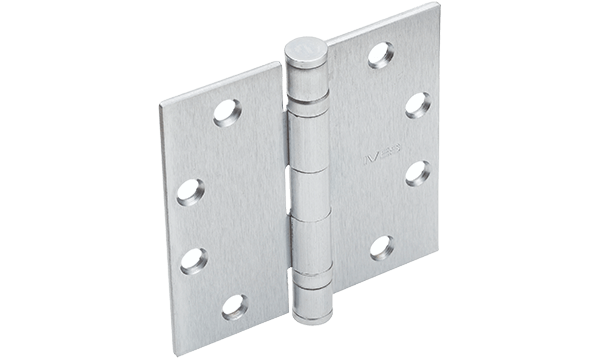

For metal door applications see 3PB1 and 5PB1 models



Material Substrates:

Made from 1040 Steel



Fasteners:

Packed with fasteners for wood doors − #9 x 1 FPHWS

Model | Height x Width (in) | Corner

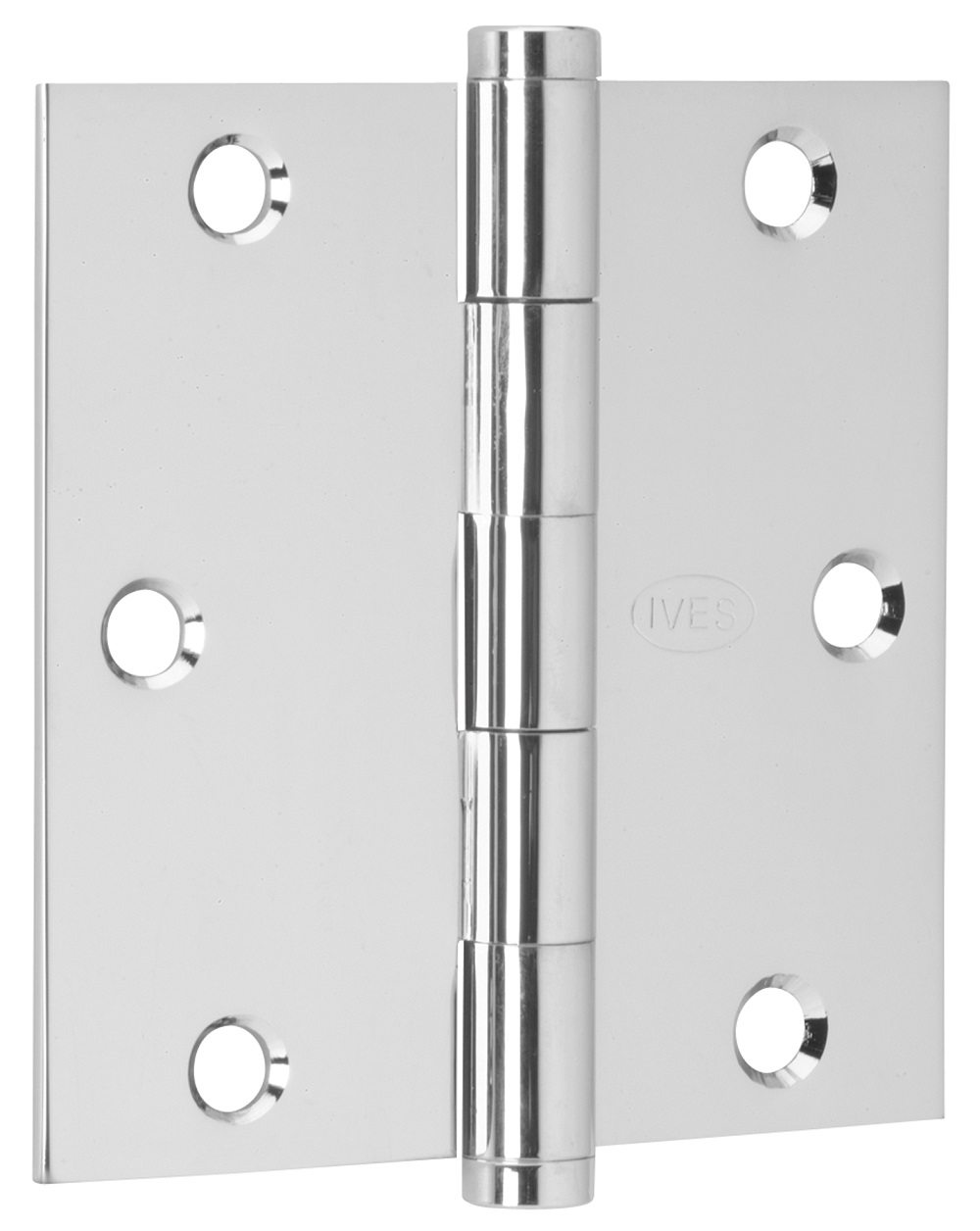

1010RP | 3.5 x 3.5 | Square

1011RP | 3.5 x 3.5 | 5⁄8" Radius

1012RP |  3.5 x 3.5 | 1⁄4" Radius

1020RP | 4 x 4 | Square

1021RP | 4 x 4 5⁄8" | Radius

View available finishes to suite with your LCN, Schlage, or Von Duprin hardware.



BHMA Description Substrate Finish

631 Matte Black Steel F-622E

632* Bright Brass Steel F-605E

646 Satin Nickel Steel F-619E

651 Bright Chrome Steel F-625E

652 Satin Chrome Steel F-626E

643e/716 Aged Bronze Steel F-716E

* Only available on 1011 model. For other colors, consult factory

1000 Series Residential Plain Bearing Hinges

These Grade 3 plain bearing residential hinges are ideal for doors weighing less than 70lbs with lower usage, such as residential applications. Comes standard with a removable pin and cap and is compatible with Ives hinge pin door stops.

Connect with Allegion Team

Overview

Ives five-knuckle plain bearing residential hinges are designed for use on wood doors weighing less than 70lbs, or with lower traffic residential applications without closers. Ives 1000 Series hinges are available in 1040 steel substrate in 3.5 x 3.5 - 4 x 4 sizes and a broad range of finishes, and square or rounded corners. Now compatible with Ives hinge pin door stop models (69, 70, 72, 73) and designed with removable pin and cap. Comes standard with wood door fasteners.

Features

Ideal For

 Light Duty

 Multifamily

 Wide Range of Options

Ives 101

For frequently asked questions, educational resources and technical product materials, visit the Architectural Hinges 101 page.

Learn the Basics
